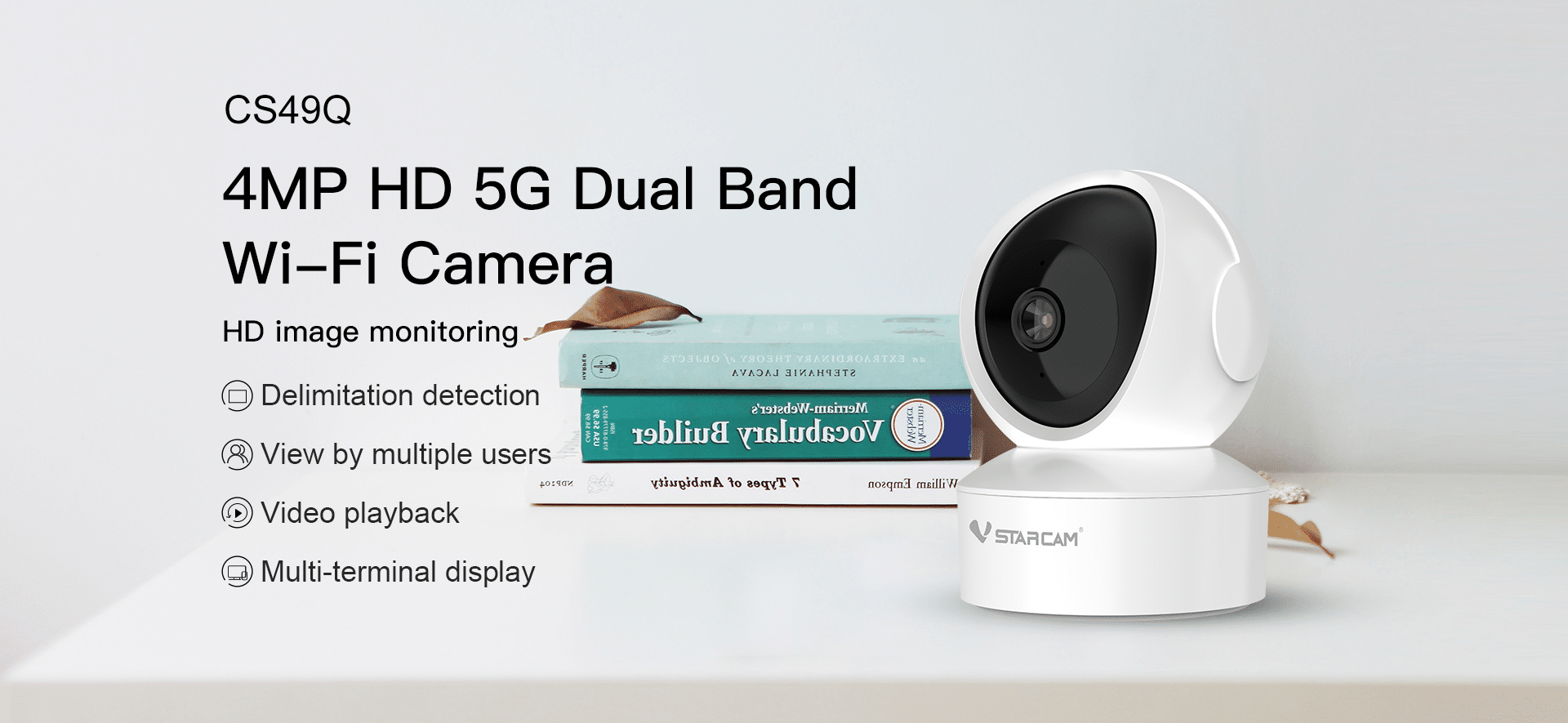

4MP HD 5G Dual Band Wi-Fi Camera CS49Q

Pan &tilt

Pan 348° Tilt 70° Broad vision without leaving any blindspots, ensuring family safety at all times.

Intelligent Dual-band Wi-Fi Fast and stable

Using dual-band Wi-Fi transmission technology can support dual-band signals of 2.4GHz and, at the same time, automatic identification, faster network speed, and faster watching of videos.

Infrared night vision Fine picture quality

IR-CUT automatically switches, 6PCS lR LED lights, Irradiation distance 5-10 m; see clearly even at night.

AI Humanoid detection

Motion detection: when a humanoid is detected in the monitoring area, an alarm message will be pushed to the mobile app in real-time, effectively filtering out changes in light, shaking of tree shadows, Invalid alarms triggered by pets, etc., improving the accuracy of alarms

4MP HD Clearer image

4 MP HD, Max pixel 2560X1440P, Fine picture, capture more wonderful details and record beautiful moments.

Two-way talk: Chat freely

Built-in speaker and high-sensitivity microphone for easy communication anytime, anywhere.

Delimitation Detection Active Defense

Draw the warning area; if someone moves into the monitoring area, immediately push the warning message to the mobile phone.

H.264+ high compression ratio

Without losing image quality, the H.264+ encoding standard can compress the video size to half of the H.264 standard, making transmission more efficient.

Support 3 installation methods

Install according to the environment and your own needs

A variety of scenes, always guarding

Remote monitoringMulti-terminal viewing

Support real-time viewing on mobile phones, notebook computers, and other terminals

One-click sharing is more fun.

Remotely shoot through VStarcam’s “O-KAM” APP and upload to social networks. You can share videos or pictures on Sina Weibo or forward them to WeChat friends and Moments. Rich network functions can further expand the joy of life

Easy WiFi configuration: simple and fast

Abnormal records Check at any time

24-hour monitoring, audio, and video videos of abnormal situations will be automatically recorded and stored. There are backups for safety, and important information is not omitted. Support memory card and cloud video storage, flexible playback, and easy checking.

Spec

Sorts	Type	Parameters
System	Operating system	Embedded Linux
	Online visitor	Supports 4 visitors at the same time
	CPU/Image sensor	1/3 inch progressive scan CMOS sensor
	Minimum illumination	0.5 Lux（Color mode）, 0.1 Lux（B&W mode）
	Lens/Viewing angle	[email protected]/101° Diagonal
	Night vision	IR-CUT with auto-switching，6 pcs IR LED lights; Irradiation distance: 5~10 m
	Compression standard	H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
	Data rate	Main stream: 1440p(2560×1440)@25fps，Substream：360p(640×360)@15fps
	Bit rate/maximum frame rate	128～4096kbps/30fps
	Image adjustment	Brightness and contrast are adjustable
Audio	Input	Built-in -38dB microphone
	Output	Built-in 8Ω1W speaker
	Sampling frequency/bit width	8KHz/16bit
	Compression standard/Bit Rate	G.711/64kbps
Network	Network interface	10Mbps/100Mbps adaptive /RJ45 interface
	Network protocol	TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.
	Wireless network	IEEE802.11b/g/n/ac； Supports AP mode
	Wireless frequency	2.4/5.2, 5.3,5.6 GHz
	Wireless security encryption	64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
Pan & Tilt	Pan & Tilt	Pan 348° /Tilt 70°
Pan & Tilt	Preset position	Supports 16 (Mobile phone App supports 5) preset positions
Storage	Storage functions	Supports T-Flash card(max supports 256GB); Cloud Storage；NVR；NAS
Alarm	Alarm detection	Supports Motion detection; Humanoid detection; Humanoid framing; Absence detection; Delimitation detection
Physical Indicators	Rated voltage	DC 5V±5%
	Power consumption	Rated power: 2.6W (with IR LED lights ON)/ Max power: 6W(with Pan & Tilt ON)
	Operating condition	Temperature: -10～50℃; Humidity: ＜90%
	Weight	Net: 190g （Note: in kind prevail）
	Package size	170x150x108mm
