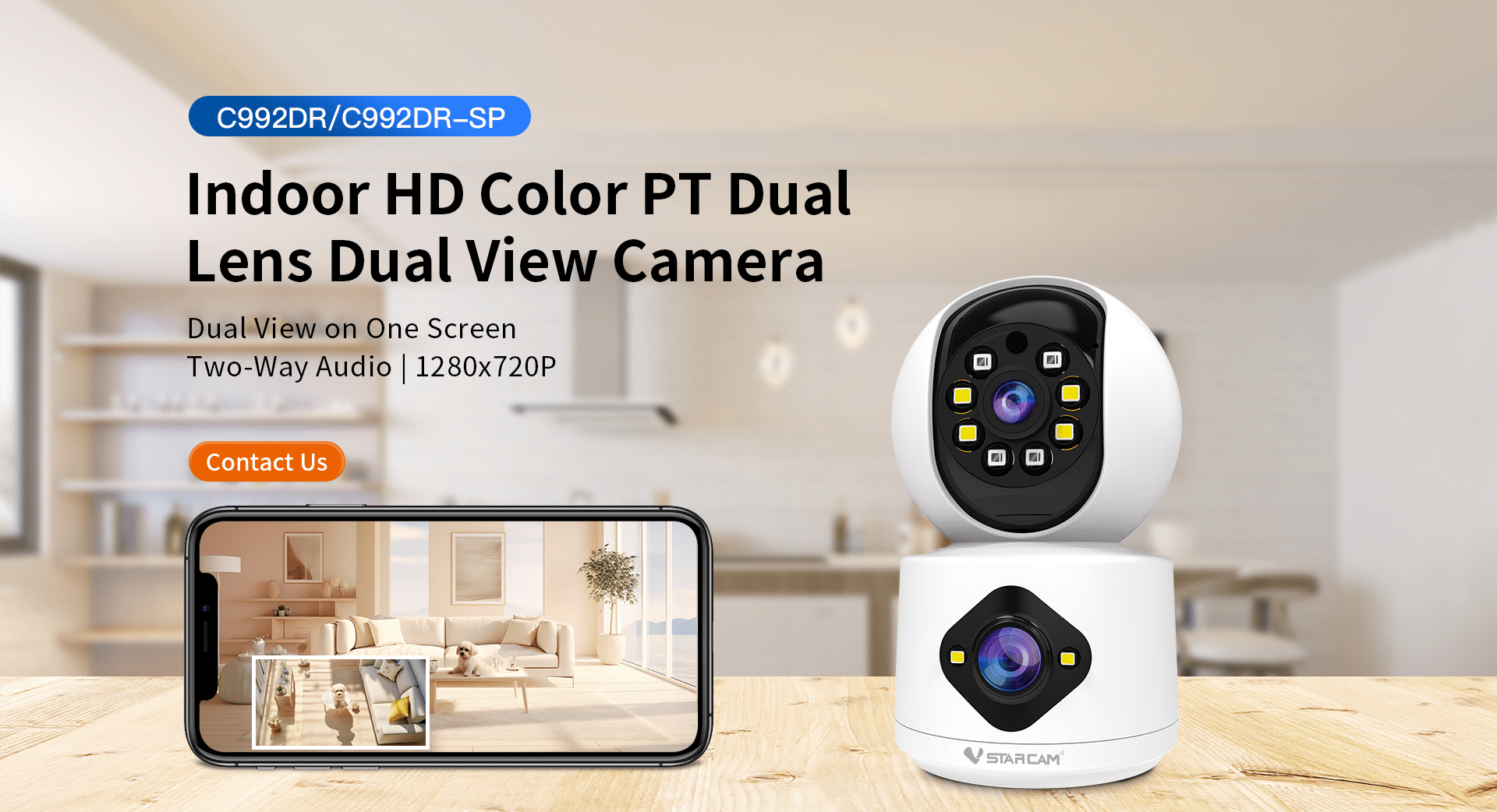

Indoor HD Color PT Dualens Dual View Camera C992DR/C992DR-SP

1280x720P

HD realistic image

Dual Lens Dual View Checking

It enables you to view different areas on one screen, giving you peace of mind.

Two-Way Pan&Tilt

It can rotate horizontally and vertically, providing you 360-degree protection.

Two-Way Voice

Two-way voice intercom for real-time caring anytime and anywhere.

Full-Color Night Vision

It presents color images day and night with vivid and realistic details.

Human form detection alarm

When a human figure appears in the monitoring area, the phone receives real-time alerts.

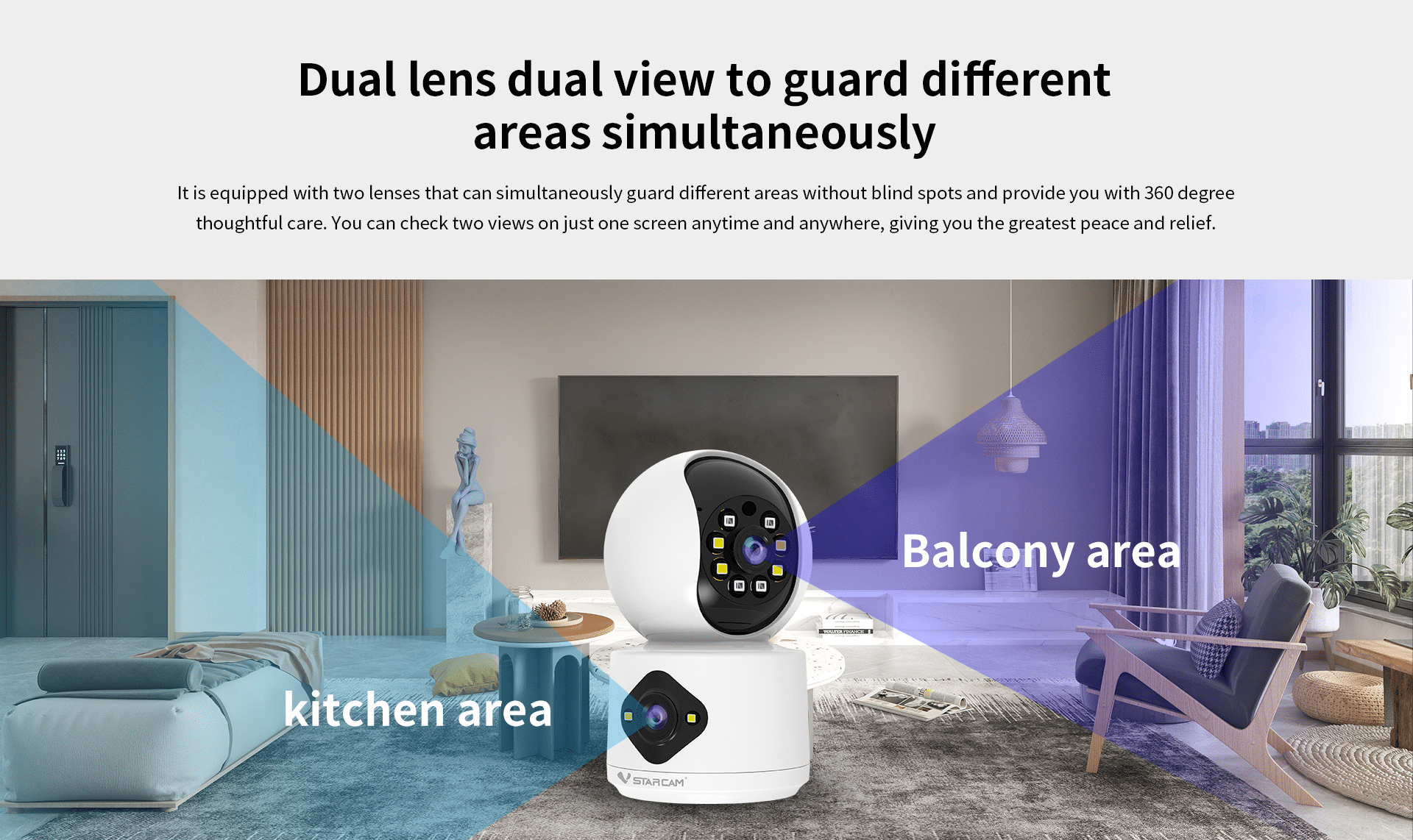

Dual lens dual view to guard different areas simultaneously

It is equipped with two lenses that can simultaneously guard different areas without blind spots and provide you with 360-degree thoughtful care.

You can check two views on just one screen anytime and anywhere, giving you the greatest peace and relief.

Intelligent Dual-band Wi-Fi Fast and stable

Using dual-band Wi-Fi transmission technology can support dual-band signals of 2.4GHz and 5GHz at the same time, automatic identification, faster network speed, and smoother video watching.

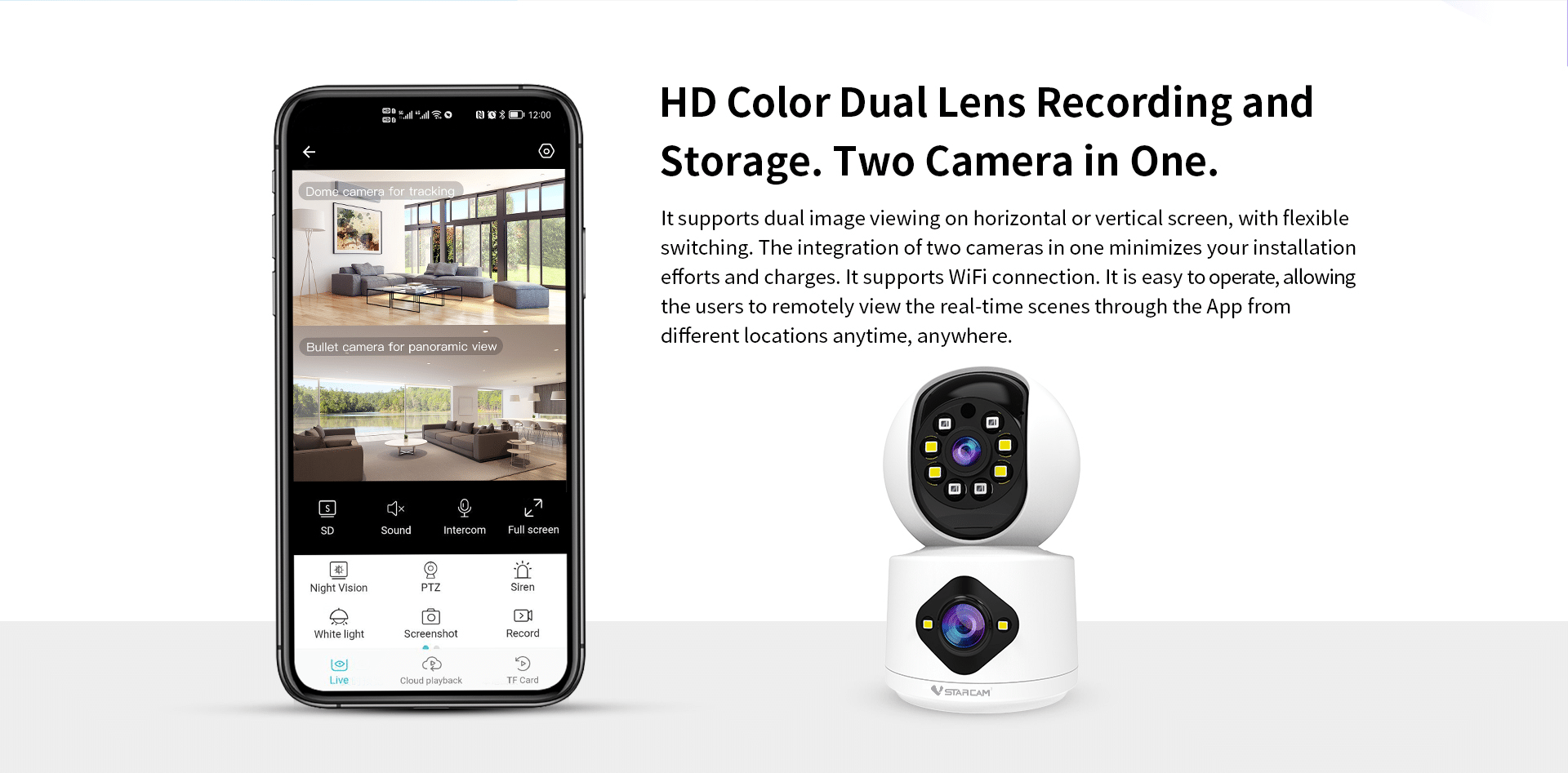

HD Color Dual Lens Recording and Storage. Two Cameras in One.

It supports dual image viewing on horizontal or vertical screens, with flexible switching. The integration of two cameras in one minimizes your installation efforts and charges. lt supports WiFi connection. It is easy to operate, allowing the users to remotely view the real-time scenes through the App from different locations anytime, anywhere.

1280x720P HD video

With 1280x720P video resolution, the camera presents delicate and clear videos. And the 5MP photo resolution allows you to capture every important moment.

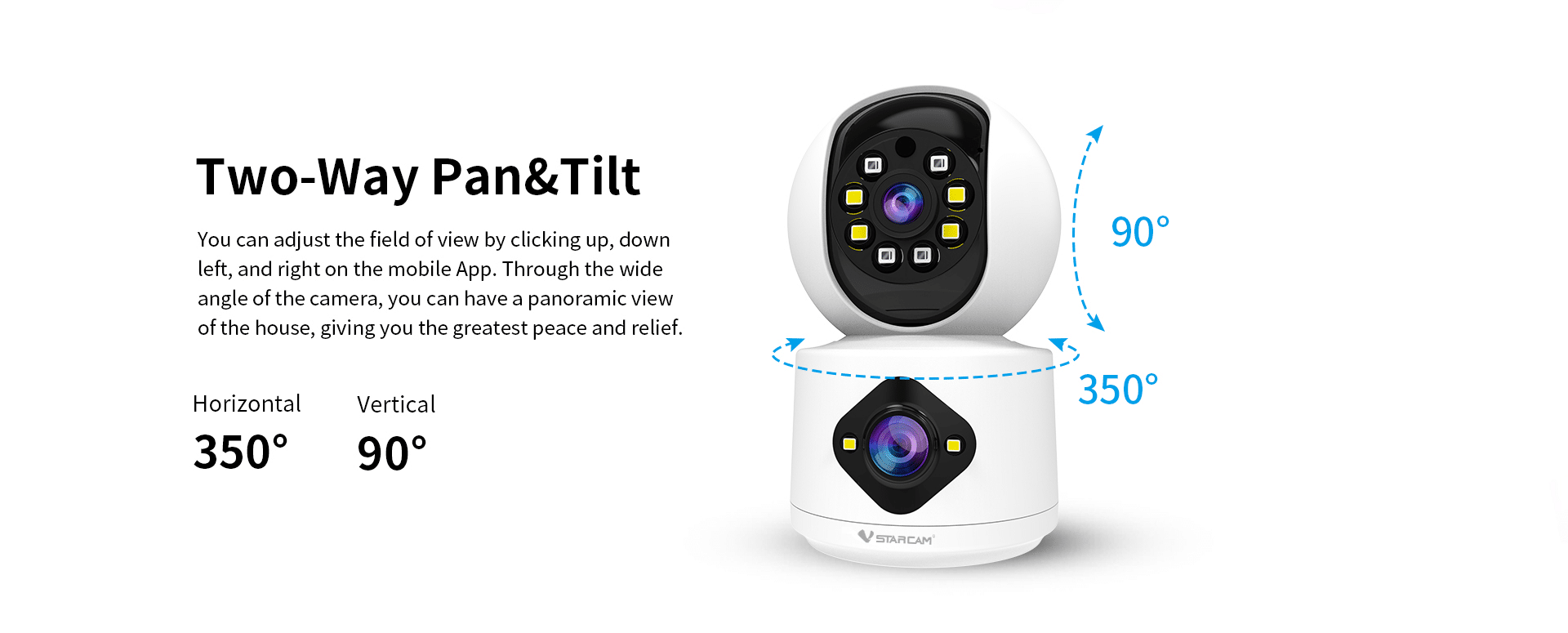

Two-Way Pan&Tilt

You can adjust the field of view by clicking up, down, and right on the mobile App. Through the wide angle of the camera, you can have a panoramic view of the house, giving you the greatest peace and relief.

24/7 HD Color Image Recording and Storage

It supports a WiFi connection and is easy to operate. You can view the monitoring area remotely anytime,anywhere.

Full-Color Night Vision with Rich and Full Details

The camera is equipped with automatic switching dual filters. Whether during the day or night, itcan present color high-definition realistic image quality, without fear of darkness.

1280x720PResolution HD image

Its maximum resolution is 1920×1080, with high-definition and delicate image quality, capturing more details and easily achieving clear surveillance from afar.

Two-Way Voice for Remote Intercom

Hear and speak to people on your property from your mobile device with the high-quality built-in microphone and speakers.

The two-way voice feature can bring you a rich interactive experience.

Human Detection+Human Tracking

When a human figure moves within the monitoring area, the camera will capture its movement trajectory, track its position, and push an alarm notification to the phone in real-time to remind the owner to view the actual situation and prevent losses in a timely manner.

Optional storage methods

It supports TF cards (up to 256GB), cloud storage, and other storage methods. Record and replay at any time, fearless of loss, safe, and reliable.

Cloud storage is affordable, safe, and convenient

You can smoothly view the video playbacks by date and time anytime and anywhere remotely and download, share, and take photos of these playbacks for a better interactive experience.

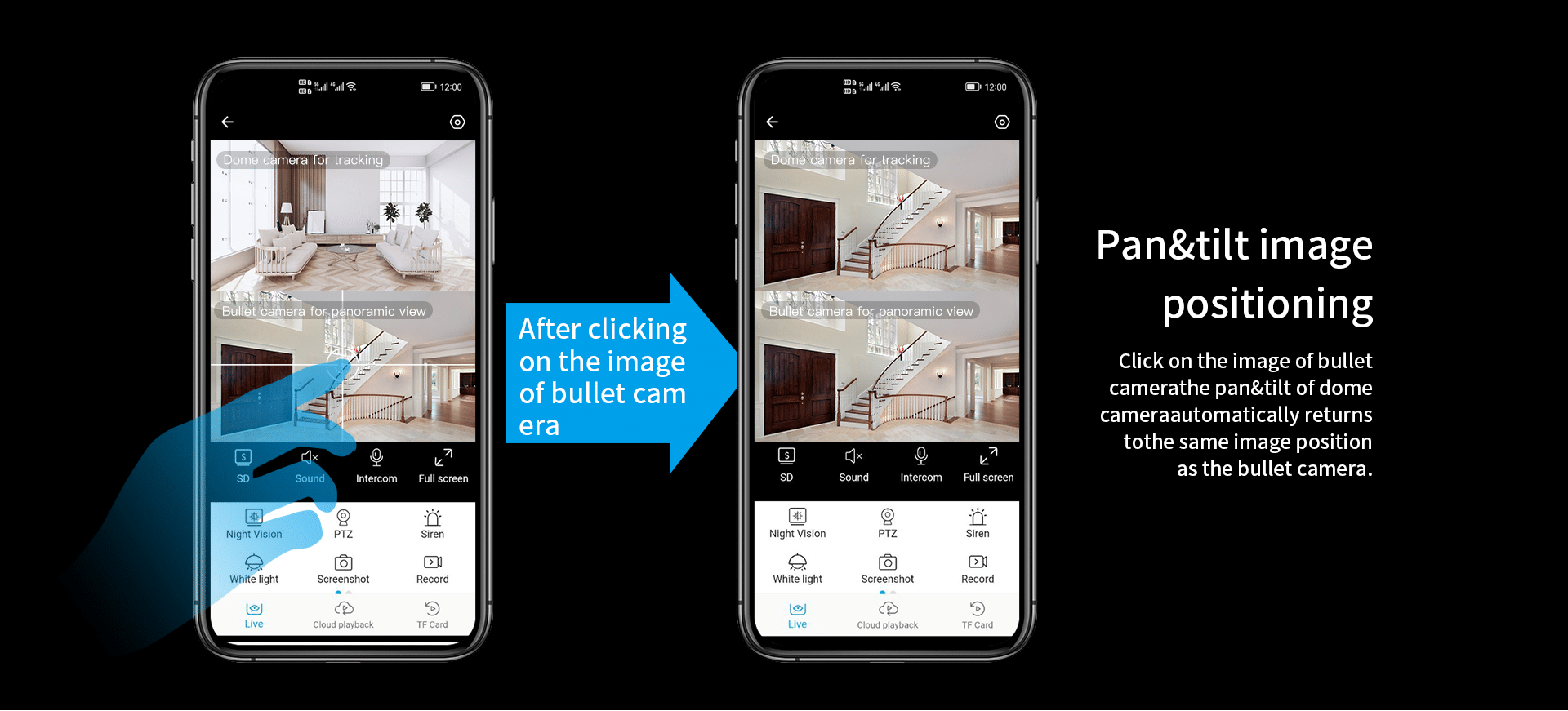

Pan&tilt image positioning

Click on the image of the bullet camera, and the pan and tilt of the dome camera automatically return to the same image position as the bullet camera.

Simultaneously guarding the entrance and living room

Simultaneously monitoring the check-out counter and shelves

Simultaneously watching the bar counter and seats

Spec

C992DR C992DR-SP
✮1 MP HD ✮Dual Band WiFi 2.4GHz+5GHz
✮Dual lens dual views, monitor with no blind spots ✮Dual lens dual views, monitor with no blind spots
✮F1.0 large aperture, more light intake, clearer night vision ✮F2.0 large aperture, multiple light inputs, clearer night vision
✮ISP image processing technology, preserving true colors ✮ISP image processing technology, preserving true colors
✮Human detection, real time alerts ✮Human detection, real time alerts
SortsTypeParameters SortsTypeParameters
SystemOperating systemLinux SystemOperating systemLinux
Online visitorSupports 4 visitors at the same time Online visitorSupports 4 visitors at the same time
APPO-KAM Pro APPO-KAM Pro
CollectionCPUIngenic CollectionCPUIngenic
Memory512Mb Memory512Mb
Lens4mm Lens4mm
Image sensor1/3 inch CMOS sensor Image sensor1/3 inch CMOS sensor
Min. Illumination0.5Lux (color mode), 0.1Lux (b&w mode) Min. Illumination0.5Lux (color mode), 0.1Lux (b&w mode)
Sensor performanceSupport automatic white balance, automatic gain control and automatic backlight compensation Sensor performanceSupport automatic white balance, automatic gain control and automatic backlight compensation
Night visionBlack and white night vision, full-color night vision Night visionBlack and white night vision, full-color night vision
Lens/Viewing angleDiagonal 58..7 ° Lens/Viewing angle4mm/Diagonal 91 °
VideoResolution720P/1280×720/15FPS/500W VideoResolution1080P/1920×1080/15FPS/500W
Night visionBlack and white night vision, full-color night vision Night visionBlack and white night vision, full-color night vision
Compression standardH.264 main profile/Motion-JPEG/JPEG Compression standardH.264 main profile/Motion-JPEG/JPEG
IR controlIR-CUT, soft photosensitive control IR controlIR-CUT, soft photosensitive control
Bit rate128~4096kbps Bit rate128~4096kbps
Image adjustmentBrightness, contrast, OSD display Image adjustmentBrightness, contrast, OSD display
AudioInputBuilt-in -38dB microphone AudioInputBuilt-in -38dB microphone
OutputBuilt-in 8Ω1W speaker OutputBuilt-in 8Ω1W speaker
Sampling frequency/bit width8KHz/16bit Sampling frequency/bit width8KHz/16bit
Compression standard/Bit RateG711A Compression standard/Bit RateG711A
Pan/TiltRotation angleHorizontal: 320 ° Vertical: 65 ° Pan/TiltRotation angleHorizontal: 320 ° Vertical: 65 °
NetworkNetwork interface10Mbps/100Mbps NetworkNetwork interface10Mbps/100Mbps
Network protocolTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P Network protocolTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P
Wireless networkIEEE802.11b/g/n Wireless networkWireless frequencyWireless security encryptionIEEE802.11b/g/n2.4GHz+5GHz64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
Wireless frequency2.4G
Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
StorageExternal TF cardSupports T-Flash cards (up to 256GB) StorageExternal TF cardSupports T-Flash cards (up to 256GB)
Cloud storageSupport cloud storage, users can purchase according to their needs. Cloud storageSupport cloud storage, users can purchase according to their needs.
AlarmAlarm detectionMotion detection, human detection, human framing, person tracking, and area detection AlarmAlarm detectionMotion detection, human detection, human framing, person tracking, and area detection
Physical IndicatorsRated voltageDC5V±5% Physical IndicatorsRated voltageDC5V±5%
Power consumptionRated:2.6W Power consumptionRated:2.6W
Operating conditionWorking temperature: -10~55 ℃, working humidity<90% Operating conditionWorking temperature: -10~55 ℃, working humidity<90%
WeightNet weight: 181g, Gross weight: 300g WeightNet weight: 181g, Gross weight: 300g
Camera size75x76x127mm Camera size75x76x127mm
Packaging size90x90x185mm Packaging size90x90x185mm
