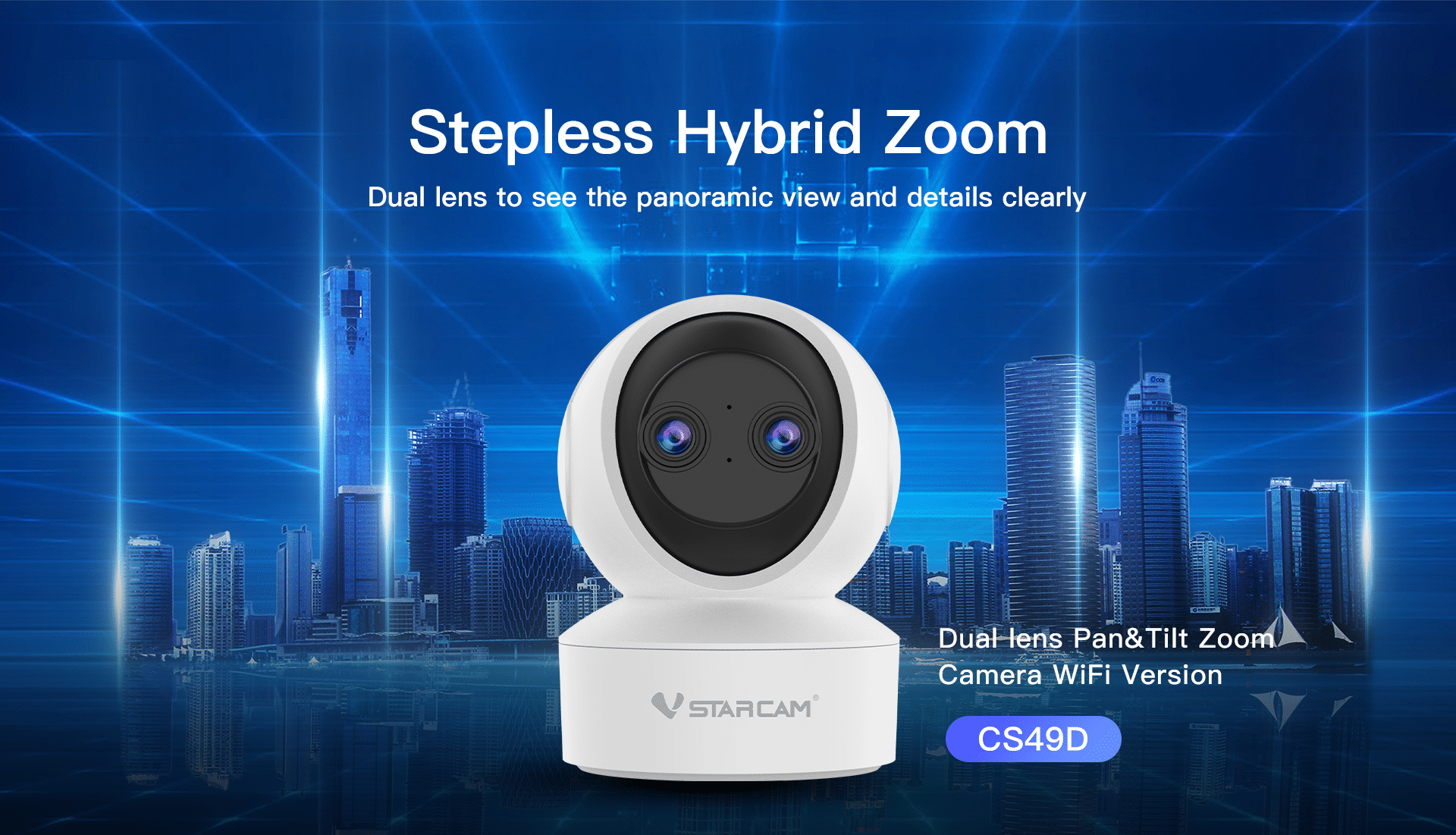

Dual lens to see the panoramic view and details clearly
Dual lens stepless zoom
Free checking of distant closeup views
Support WiFi
Wiring free
Infrared night vision
Night vision range 5-10 meters
Two-way audio
Real-time remote communication
Humanoid detection framing
Real-time alarm and tracking
TF card/Cloud storage
Multi storage methods

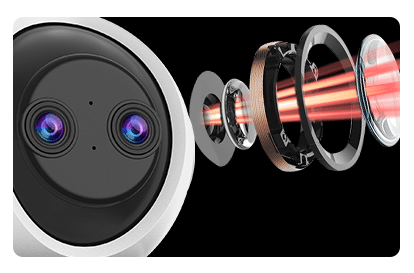

4mm+12mm telephoto+short focus dual lens
Zoom in for clear closeup details
With a coverage distance of 20 meters, it can easily guard indoor scenes.
Dual lens Camera
Feel like watching a big movie at home
Quick Zoom in
With Vstarcam, a self-developed image algorithm can achieve rapid zooming of images with no delay in imaging.
Smoother magnification means clearer details.
AI Humanoid Detection Real-time Alarm
When there is human movement in the monitoring area, it immediately pushes an alarm message to the mobile phone to reduce false alarms caused by ordinary mosquitoes and swaying trees and improve the accuracy of the alarm.
2K Resolution HD Monitoring
The maximum pixel is 2304 x 1296P with delicate image quality, capturing more exciting details and beautiful moments.
Two-Way Audio Real-time Remote Intercom
It is equipped with a high-power speaker and a high-sensitivity microphone, allowing for real-time communication with the person in the guarded area, making it easy to chat freely.
Personalize Voice Prompt for Welcoming
Guests and Preventing Theft
It comes with a variety of voice prompts. You can customize different voice prompts and use them for various scenarios. When the device detects someone entering or leaving, it will automatically broadcast a prompt voice, which is suitable for important places such as shops, residential buildings, warehouses, etc.

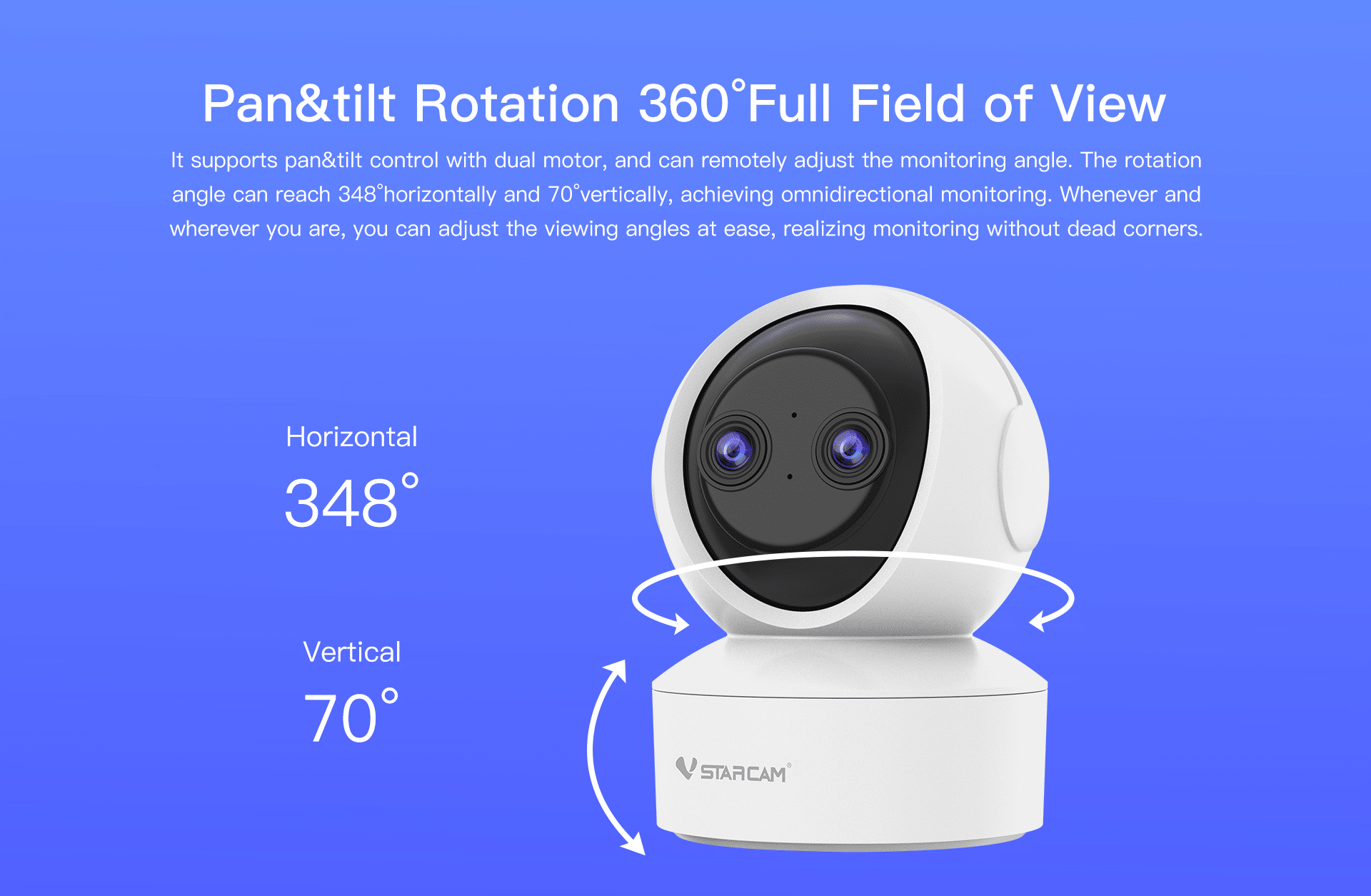

Pan&tilt Rotation 360° Full Field of View
It supports pan and tilt control with a dual motor and can remotely adjust the monitoring angle. The rotation angle can reach 348’horizontally and 70″ vertically, achieving omnidirectional monitoring. Whenever and wherever you are, you can adjust the viewing angles at ease, realizing monitoring without dead corners.
Infrared Night Vision with Delicate Image Quality
It has Auto lCR and eight infrared lights with an illumination distance of 5-10 meters. The image is still clear at night.
Hybrid Zoom for Distant and Closeup Views
It is widely applied in scenarios such as houses, classrooms, shopping malls, etc., taking into account of panorama views and details of the key areas.
Secure Storage Methods at Your Choice
It supports TF card, Cloud storage, and other storage methods, which can facilitate users to quickly view videos and playback. File storage is safer and simpler. The three-step configuration makes it more suitable for home use.
Spec
| Sorts | Type | Parameters |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| Image sensor | 1/3 inch CMOS sensor | |
| Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |
| Lens | 4mm short focus lens+ 12mm long focus lens, angle of view100°/30° | |
| Night vision | Automatic switch dual filters, 8 IR lights, night vision range 5-10 meters | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| Data rate | Mainstream：1296p(2304×1296)@25fps； Substream：360p(640×360)@25fps | |
| Bit rate/maximum frame rate | 128～4096kbps/25fps | |
| Image adjustment | Adjustable brightness and contrast | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8 Ω 1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/bit Rate | G.711/64kbps | |
| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless network | IEEE802.11b/g/n；Support AP mode. | |
| Wireless frequency | 2.4GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Pan&Tilt | Rotation angle | Horizontal 348 °/Vertical 70 ° (visible angle 360 °) |
| Preset position | Supports 16 presets (mobile app only supports 5) | |
| Storage | Storage | Supports TF card(max 256GB); Cloud Storage;NVR;NAS; |
| Alarm | Alarm detection | Support for motion detection, human detection, humanoid framing,human tracking |
| Physical Indicators | Rated voltage | DC 5V±5% |
| Power consumption | Rated power: 2.9W (infrared light on)/maximum power: 6.6W (pan &tilt on) | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | N.W.:200 g, G.W.:360 g (Note: in kind prevail） | |
| Package size | 170x150x108mm(LxWxH) |
