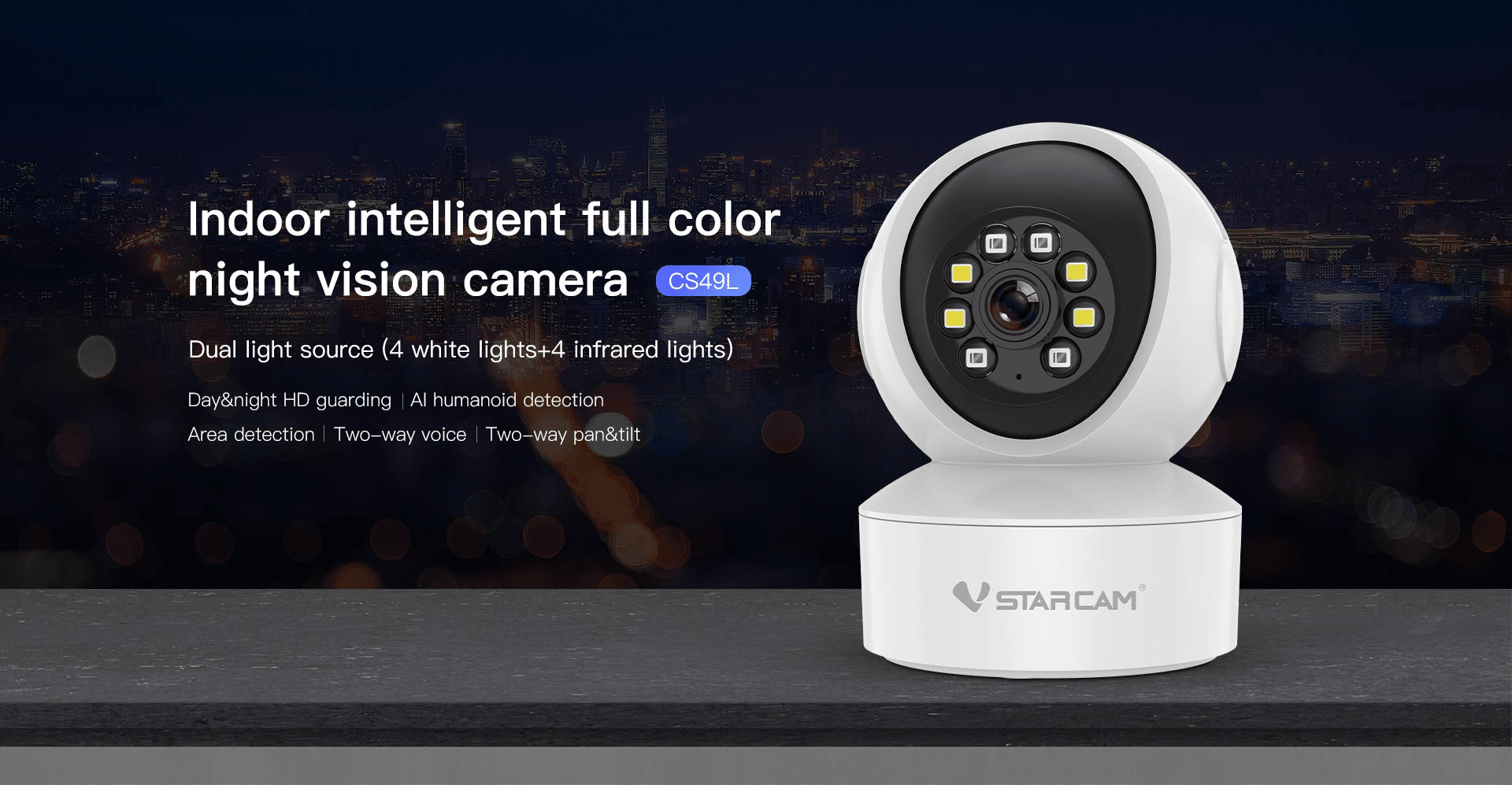

Dual light source (4 white lights+4 infrared lights)
Day&night HD guarding | AI humanoid detection
Area detection | Two-way voice |Two-way pan&tilt
HD 3 MP Delicate video footage
Up to 2304 * 1296P imaging quality
The picture is clearer, more natural, and more realistic

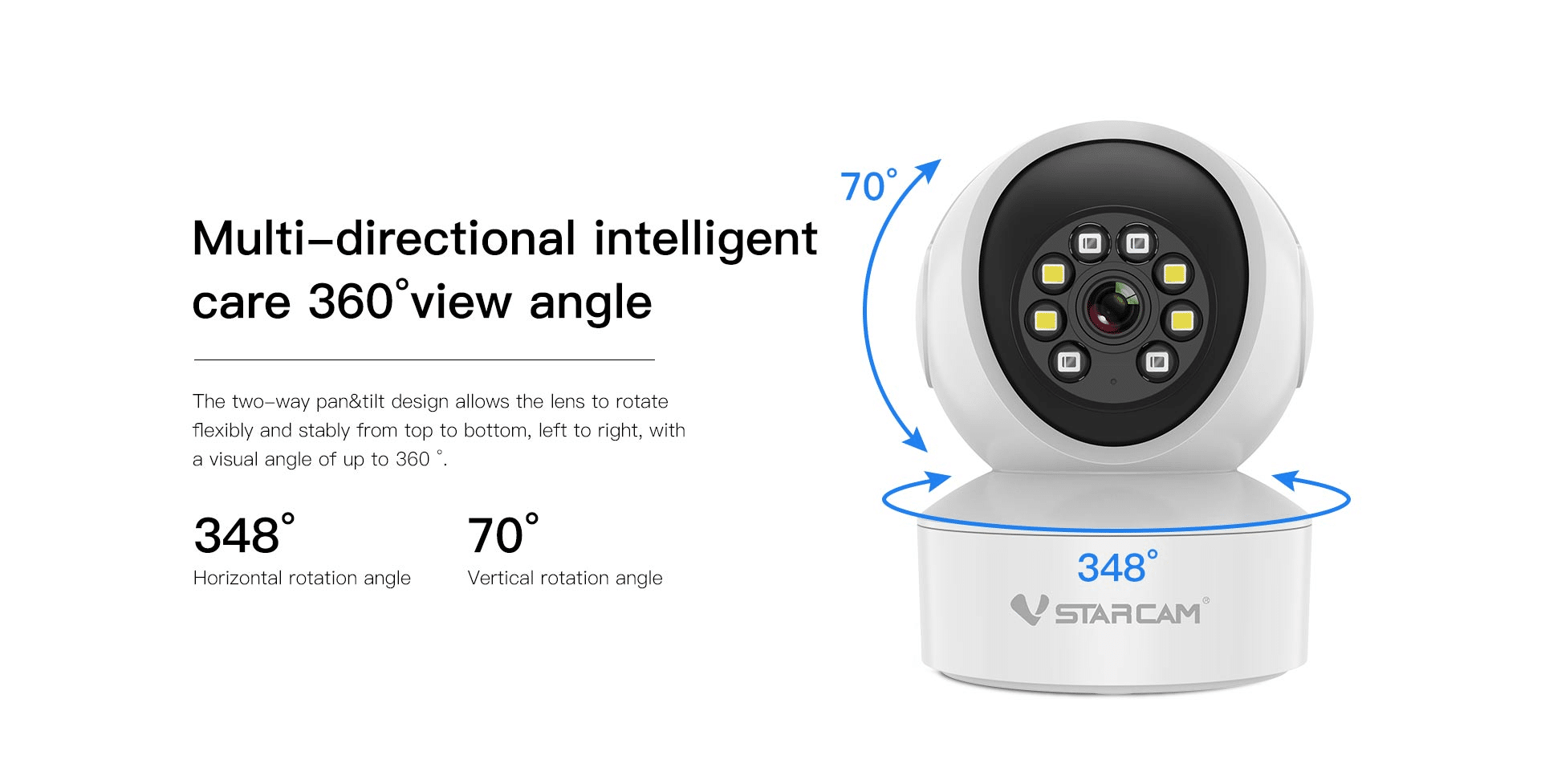

Multi-directional intelligent care 360° view angle
The two-way pan&tilt design allows the lens to rotate flexibly and stably from top to bottom, left to right, with a visual angle of up to 360°
Fearless of the dark night, night vision ranges up to 10 meters
It is equipped with dual filters for automatic switching and four white lights+4 infrared lights, allowing for an illumination distance of up to 10 meters. Its night vision effect is strong, with a clear image in the dark night
AI humanoid detection real-time alarm
When there is a human force moving in the monitoring area, an alarm message will be immediately pushed to the mobile phone. Humanoid detection helps reduce false alarms caused by mosquitoes, swaying trees, etc., and improves the accuracy of alarms.
Flexible and worry-free, convenient, and versatile.
It does not damage the original decoration of the house and has no hassle or constraints regarding the network and power cables, making it more convenient to use.
One-click sharing is a lot of fun.
Remote shooting through the O-KAM app and uploading it to social media. You can share videos or pictures on Sina Weibo or forward them to WeChat friends and social media.
The rich network functions can bring more joy to life.

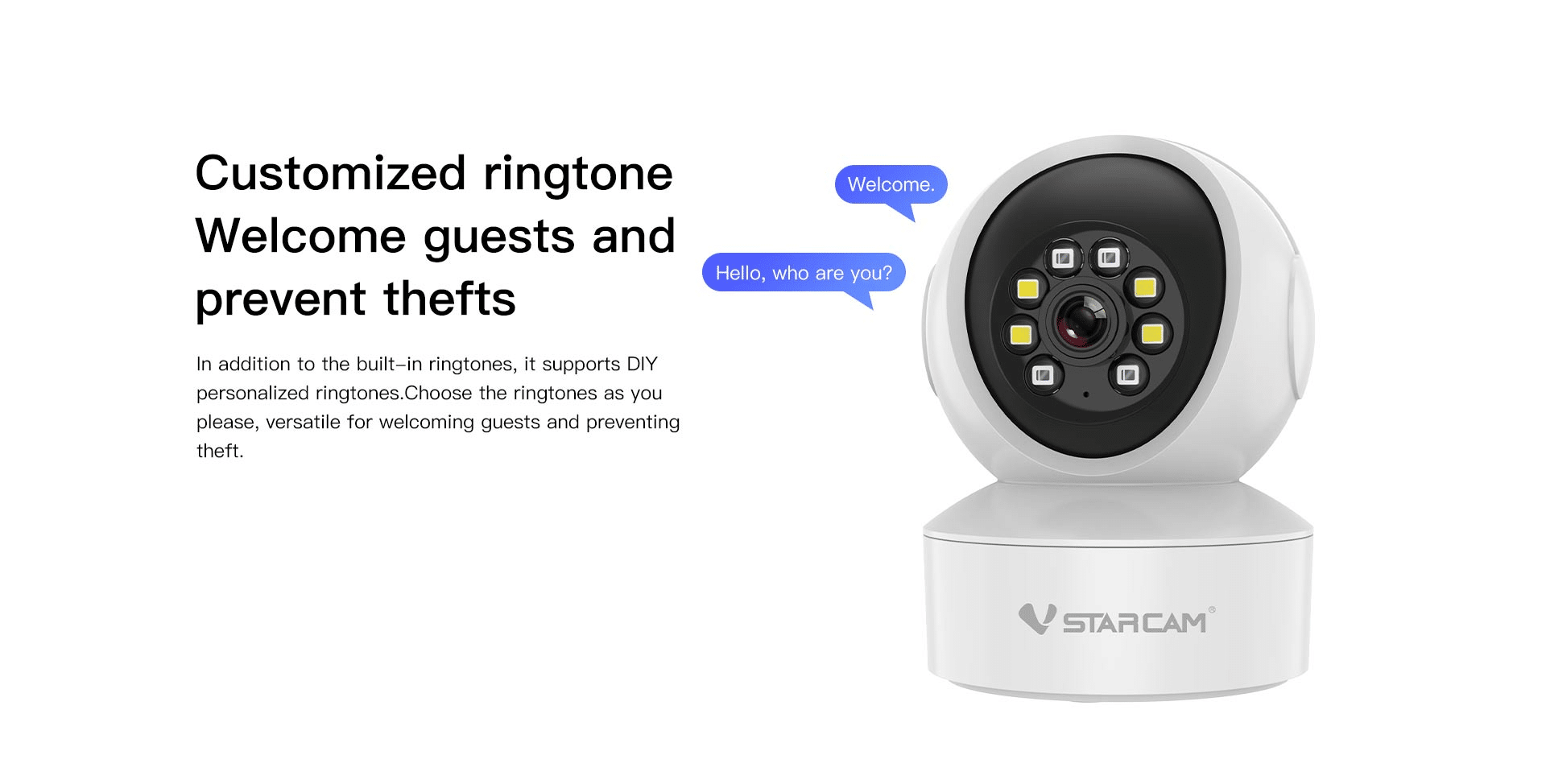

Customized ringtone Welcome guests and prevent thefts
In addition to the built-in ringtones, it supports DlYpersonalized ringtones. Choose the ringtones as you please; they are versatile for welcoming guests and preventing theft.
Remote two-way voice time intercom
It supports two-way voice with a built-in high-power speaker and a high-sensitivity microphone. A remote intercom is available on a mobile phone at any time.
Support lay flat/ceiling mount to meet various needs
If you choose ceiling mount, please find the image on the OKAM app to ensure normal viewing.
Multiple safeguards and comprehensive protection
Full encryption of data transmission
The encrypted transmission process guarantees the safety of the camera video’s storage.
Cloud data encryption
High level of security certification
Synchronous recording secure storage
Automatic recording and storage of audio and video, with secure backup and no omission of important information.
Remote monitoring multi-terminal viewing
Supports real-time viewing on multiple mobile and PC terminals
Spec
| Sorts | Type | Parameters |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| Image sensor | 1/2.9 inch 1080p progressive scan CMOS sensor | |
| Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |
| Lens/visual angle | [email protected]/90.9°Diagonal | |
| Night Vision | IR-CUT with auto-switching，dual light source, 4 white lights, 4 infrared lights, illumination distance 5-10 meters | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| Data rate | Main stream：1296p(2304×1296)@25fps； Substream：360p(640×360)@25fps | |
| Bit rate/maximum frame rate | 128～4096kbps/25fps | |
| Image adjustment | Adjustable brightness and contrast | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/bit Rate | G.711/64kbps | |
| Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless network | IEEE802.11b/g/n；Support AP mode | |
| Wireless frequency | 2.4GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Pan&Tilt | Rotation angle | Horizontal 348°/Vertical70° |
| Preset position | Supports 16 presets (mobile app only supports 5) | |
| Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud Storage;NVR;NAS |
| Alarm | Alarm detection | Support mobile detection,humanoid detection, human framing, absence detection, area detection |
| Physical indicators | Rated voltage | DC 5V±5% |
| Power consumption | Rated power: 2.6W (infrared light on)/maximum power: 5.8W (PTZ on) | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | N.W.：190 g（Note: in kind prevail） | |
| Package size | 170x150x108mm |
