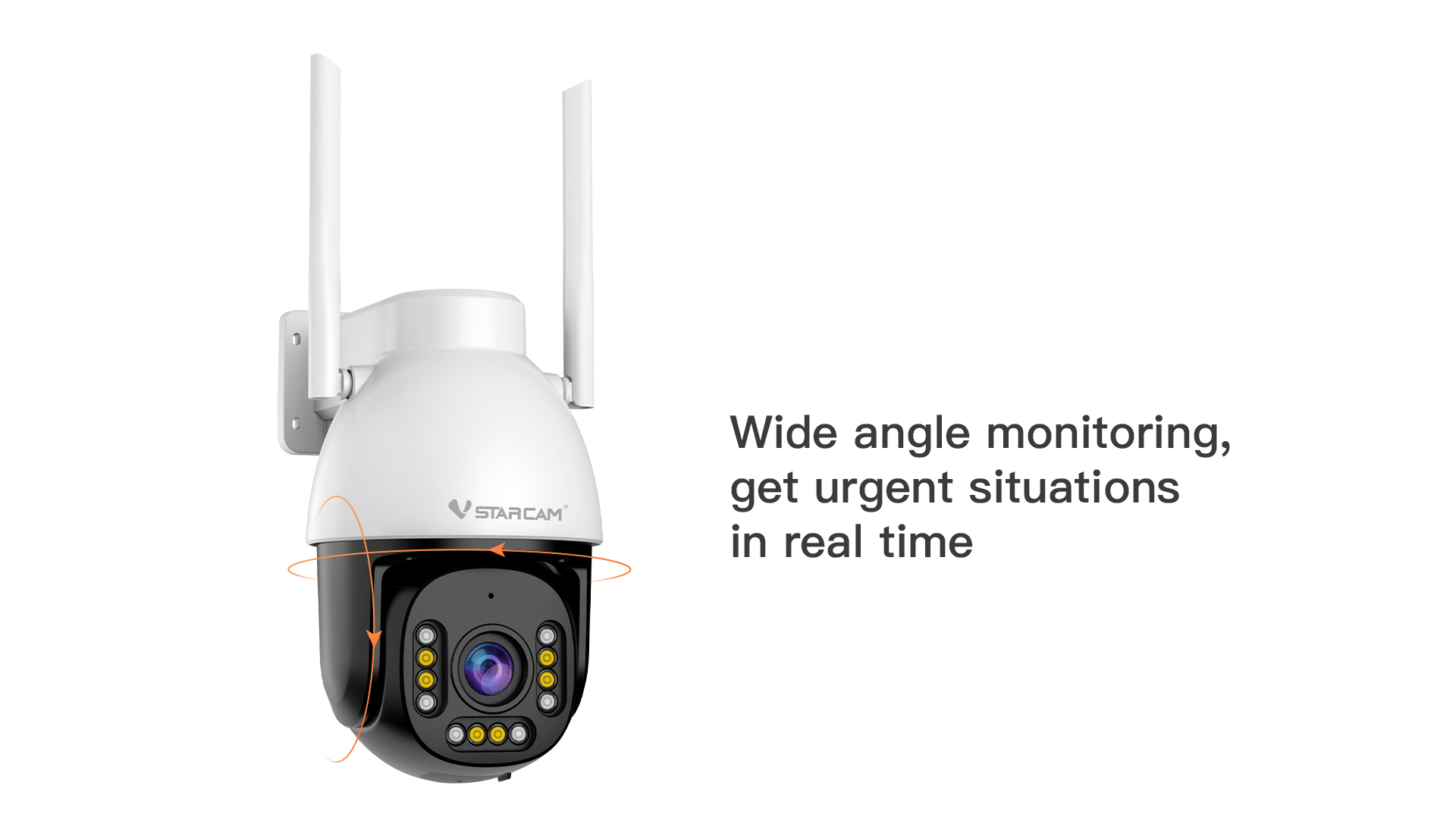

Wide angle monitoring, get urgent situations in real time

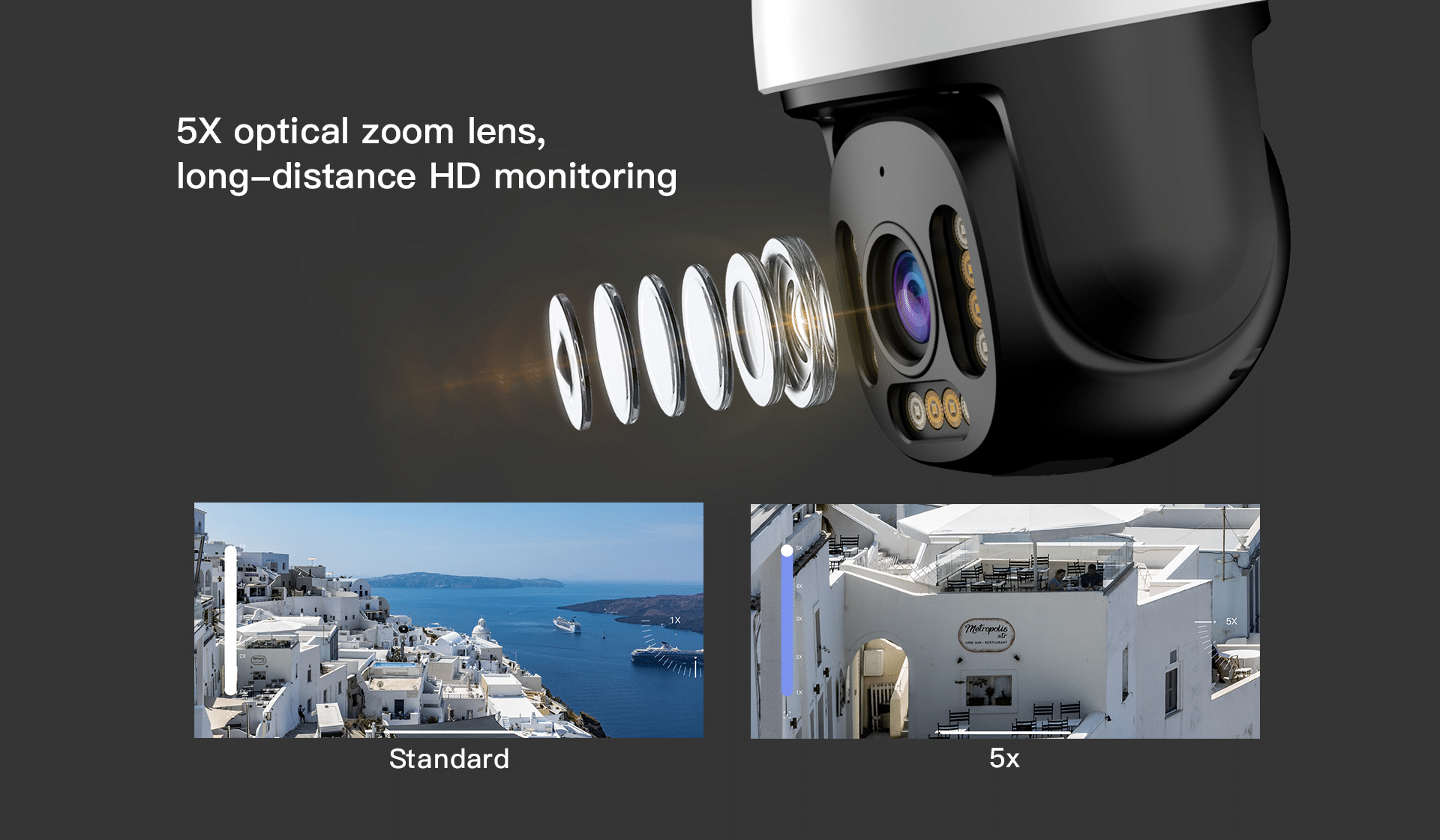

5X optical zoom lens, long-distance HD monitoring
Remote HD monitoring
4MP HD image quality, capture more image details, easily meet daily monitoring needs
Timely Alarm for abnormal situations
It supports motion detection, human detection, human framing, human tracking, and area detection. When an abnormal situation occurs, it will automatically trigger an alarm and record the event.
Sound and light alarm Dual warning
When a suspicious mobile object is detected, the device will automatically capture the suspicious image and send out a high-decibel whistle alarm to drive away. The red and blue lights will automatically flash an alarm and push the alarm information to the mobile phone app.
Two-way talk: Easy chatting
Built-in speaker and high-sensitivity microphone for easy communication anytime, anywhere
Full-color night vision
The dual halters are automatically switchedSix 850nm infrared lamps, and four high-power white lights can clearly capture wonderful moments in the morning and at night
Waterproof and dust-proof: Works perfectly on outdoor
Waterproof and dust-proof,
not afraid of wind or sun,
can easily deal with rain and snow weather
Specs
✮4 MP Ultra HD
✮5x optical zoom, long-distance high-definition monitoring
✮Soft light design，24h color imaging
✮ISP image processing technology, preserving true colors
✮Human detection, real time alerts
✮2.4G/5G WiFi.The wireless signal is strong and stable, and the video won’t sutter.
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | Sigmastar 337DE |
| Memory | 1Gbit | |
| Lens | 5x zoom lens/diagonal 99.3 ° @1X~40.5 °@5X | |
| Image sensor | 1/2.9 CMOS sensor | |
| Minimum illumination | 0.01Lux | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night Vision | Dual filter automatic switching, 6pcs 850nm infrared lights, 6 high-power white lights, 4 red and blue alarm lights, illumination distance 15-20 meters | |
| PTZ | Pan/Tilt | Pan 310°/Tilt 90° |
| Pre-positions | Supports 16 preset positions on PC, 5 on mobile | |
| Video | Resolution | 2688*1520P/25FPS/400w |
| Night Vision | Full color night vision, infrared night vision | |
| Compression standard | H.264+ /H.264 /MJPEF/JPEG | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω2W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| AI | Humanoid detection | Humanoid detection, filtering invalid video events |
| Human tracking | Automatically zooms in and follows the person after it is detected | |
| Area detection | Customize the zone that is concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4/5.2, 5.3,5.6 GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Support cloud storage, can purchase according to your need | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, human tracking, siren sound, and area detection |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 7.4W (with infrared light on), Max power: 12.8W | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | (Note: in kind prevail） | |
| Packing list | Camera, screw pack, warning sticker, screwdriver, user manual |
