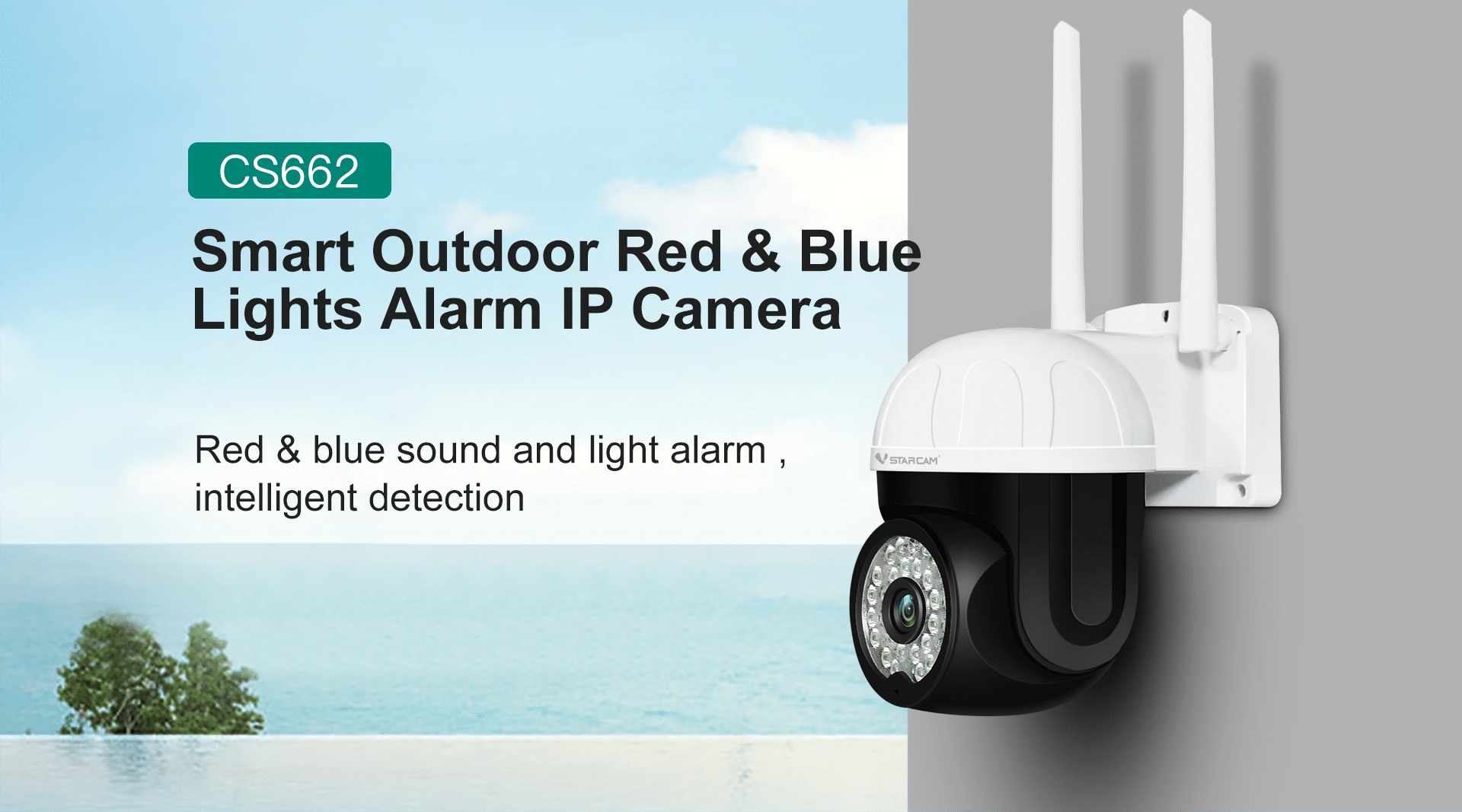

Red & blue sound and light alarm, intelligent detection

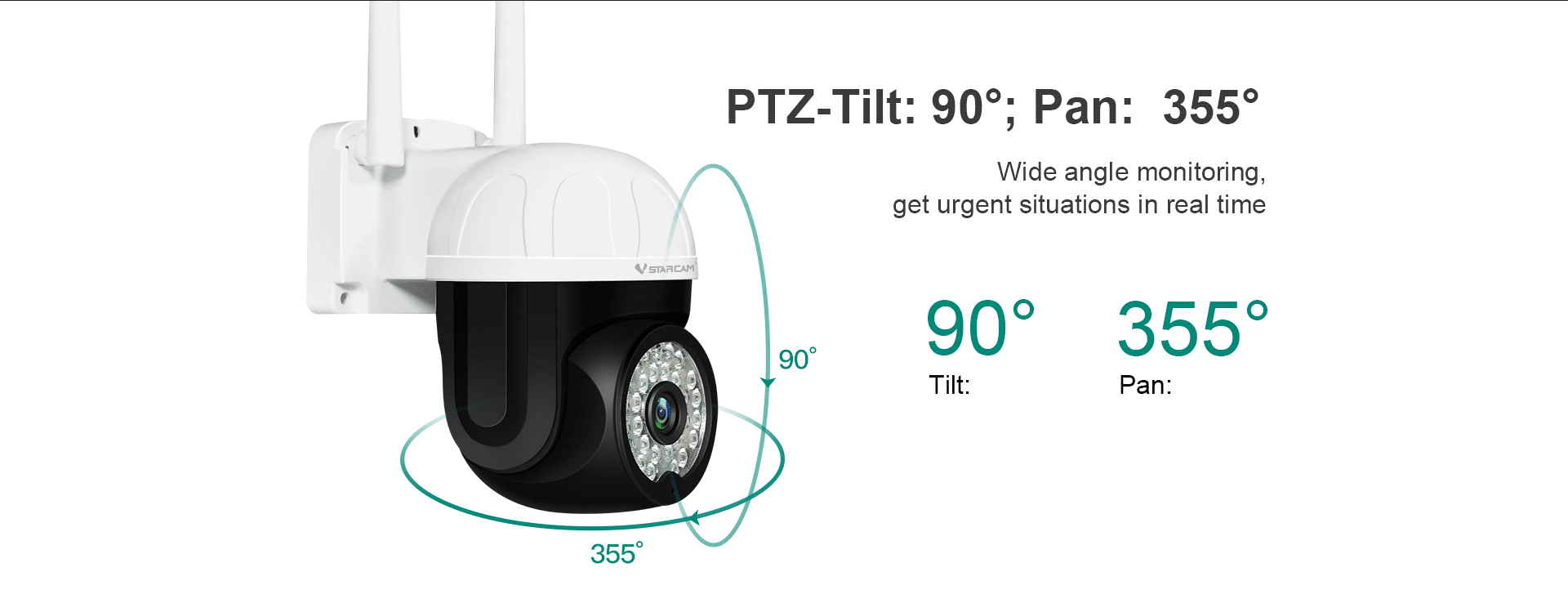

PTZ-Tilt: 90°;Pan: 355°
Wide angle monitoring,get urgent situations in real time
AI humanoid detection real-time alarm
In case of humanoid movement in the monitoring area, immediately push the alarm message to the mobile terminal so the situation can be viewed anytime and anywhere.
Two-way talk: Easy chatting
Built-in speaker and high-sensitivity microphone for easy communication anytime, anywhere
Sound and light alarm Dual warning
When a suspicious mobile object is detected, the device will automatically capture the suspicious image and send out a high-decibel whistle alarm to drive away. The red and blue lights will automatically flash an alarm and push the alarm information to the mobile phone app

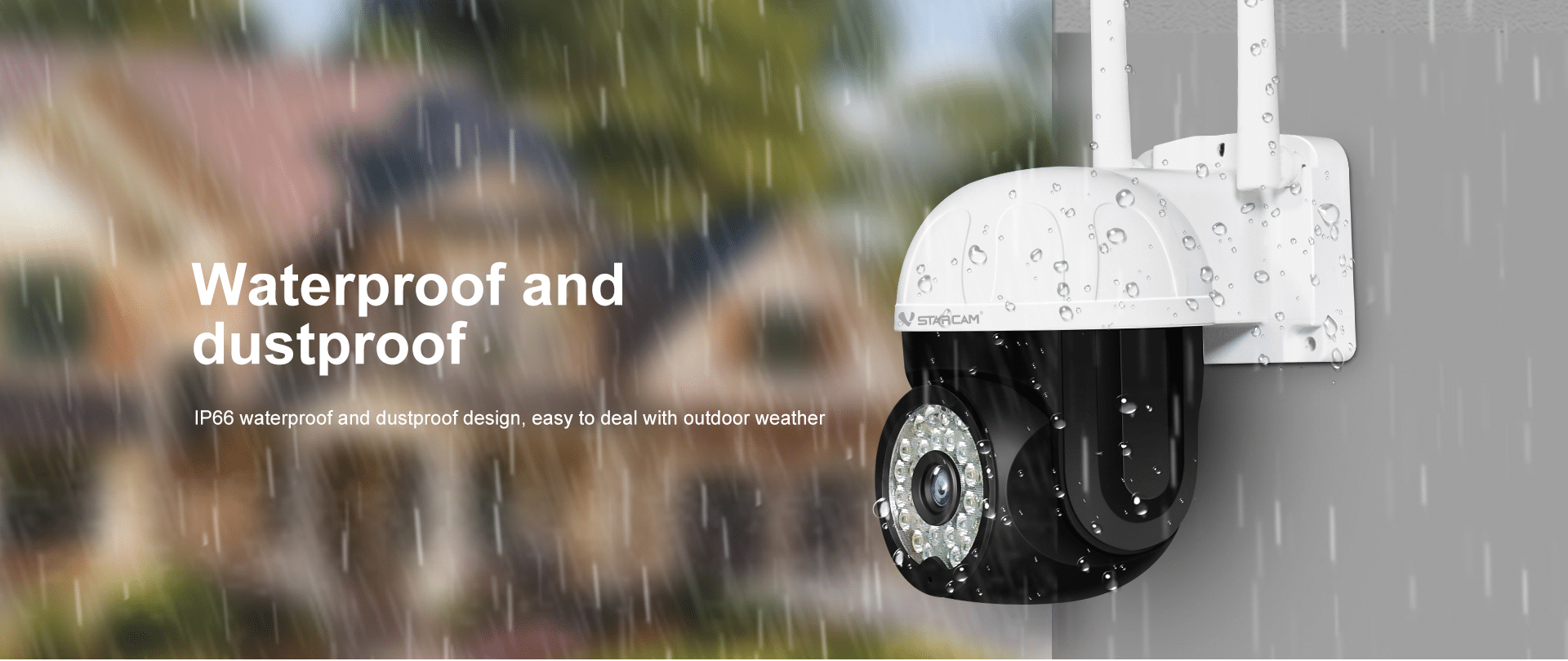

Waterproof and dustproof
IP66 waterproof and dustproof design, easy to deal with outdoor weather
HD fine image quality
10800 HD, 2MP, clear image, HD lens, truly captures more image details and easily meets the needs of daily monitoring
Full-color night vision
6 pcs high-efficiency IR LED lights, 2 pcs red and blue alarm lights, dual light sources night vision 30m, Visible day & night
Drawing alarms, getting urgent situations in real-time
Draw the warning area. When there is a humanoid movement in the monitoring area, the alarm message will be immediately pushed to the mobile phone to avoid it. Children are entering the dangerous area.
Guarding various scenes
It can be widely used in shopping malls, schools, families, finance, factories, office buildings and other scenes.
Synchronous recording, secure storage
Large capacity hard disk video recorder, Cloud storage, support TF Card (up to 256G) and other storage methods
which can facilitate fast video recording and playback and make file storage safer.
Remote monitoring and multiple terminal viewing
Supports real-time viewing of multiple terminals on mobile phone and PC

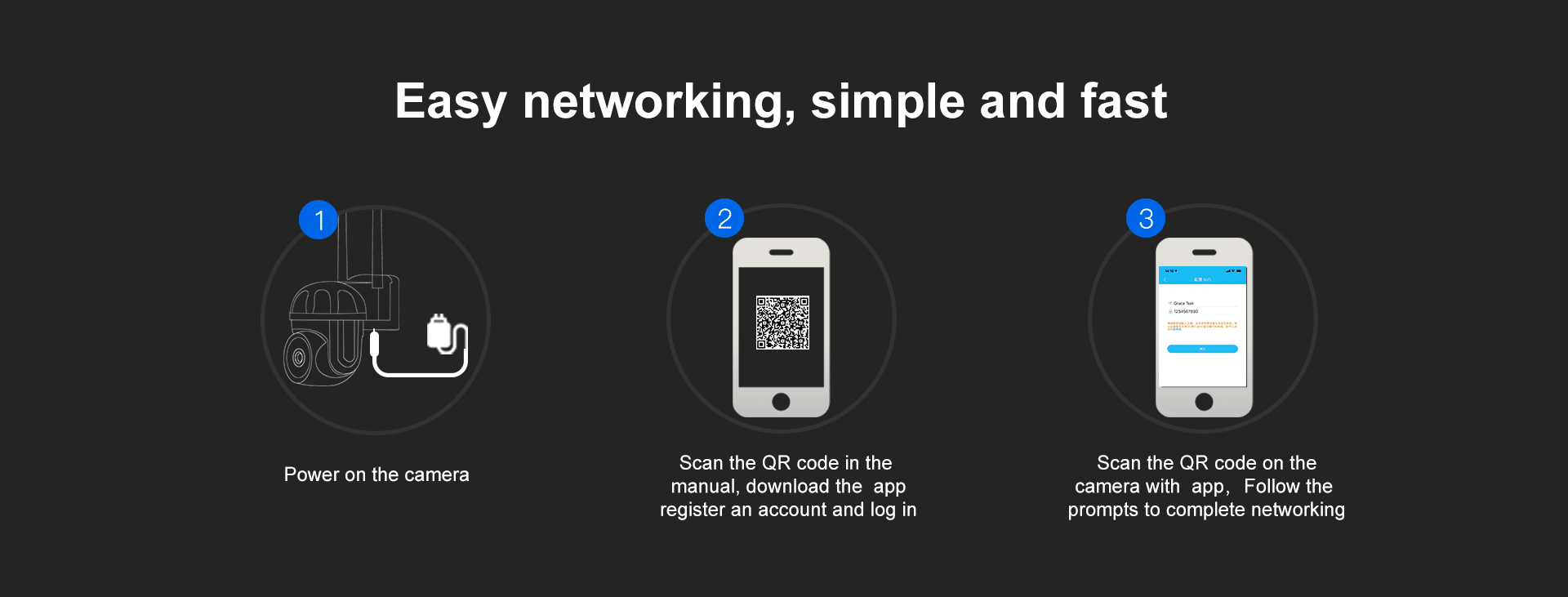

Easy networking, simple and fast
Specs
| ✮F2.0 large aperture, more light intake, clearer night vision | ||
| ✮Dual-core light board, full-color image day and night | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮Human detection, real time alerts |
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | Ingenic |
| Memory | 512Mb | |
| Lens | 4mm | |
| Image sensor | 1/2.7″ 1080p progressive scan CMOS sensor | |
| Minimum illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night vision | Black and white night vision, full-color night vision | |
| Viewing angle | Diagonal: 91° | |
| Video | Resolution | 1080P 1920×1080/15FPS/2MP；1296P 2304×1296/15FPS/3MP |
| Night vision | Black and white night vision, full-color night vision | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| Pan/Tilt | Rotation angle | Pan：355° tilt：90° |
| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Support cloud storage, users can purchase according to their needs. | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, human tracking and area detection |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 4.2W (0.35A); Maximum power: 7.8W (0.65A) | |
| Operating condition | Working temperature: -10～45℃, working humidity <90% | |
| Weight | Net weight: 323g Gross weight: 623g | |
| Camera size | 130x93x138mm | |
| Packaging box size | 180x160x125mm | |
| Carton size | 645x380x335mm, 20PCS/CARTON |
