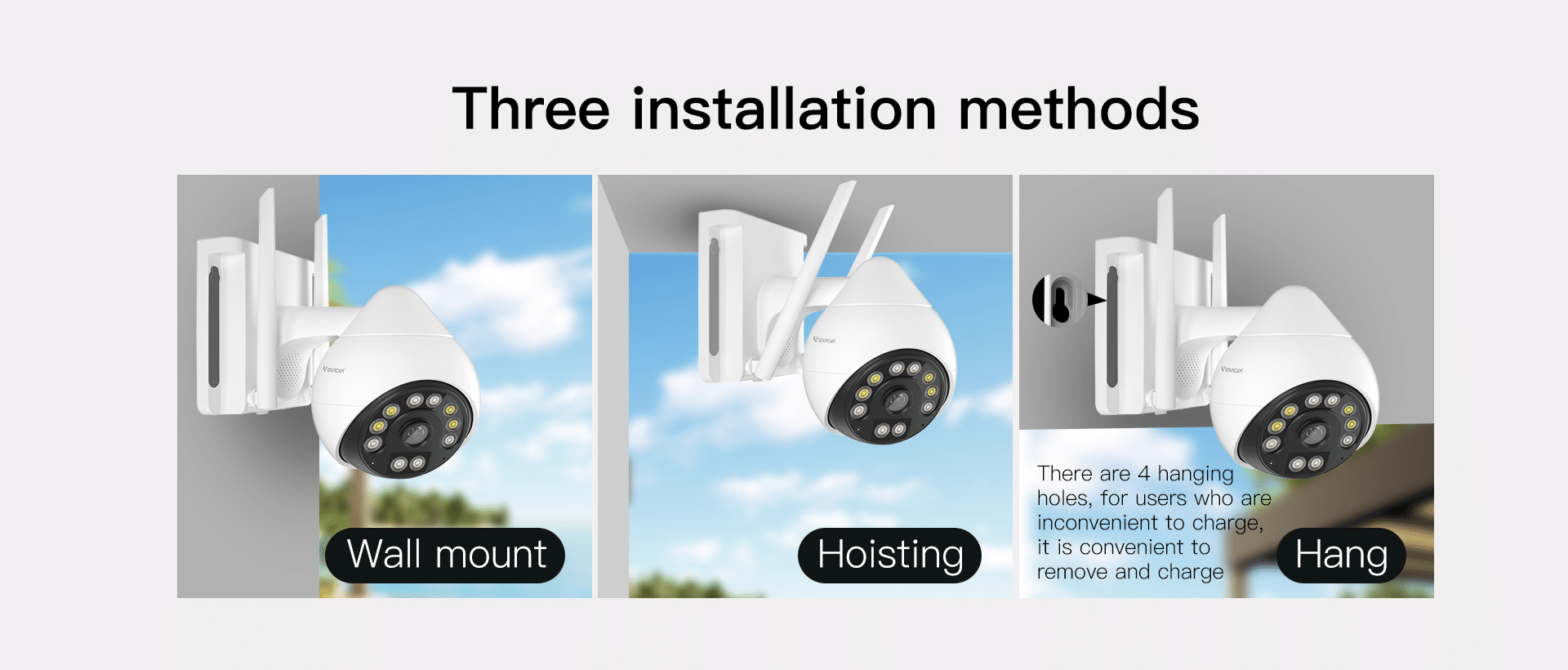

Three installation methods
2MP HD image quality, upgraded comprehensively
Fine image, as real and clear as the eyes can see
Support Pan & Tilt
107°wide viewing angle See everything clearly
Remote Two-way talk
Support Two-way talk, built-in high-power speaker, and high sensitivity microphone; talk to your family at any time.
Sound and light alarm Dual warning
When a suspicious mobile object is detected. The device will automatically capture the suspicious image and send out a high-decibel whistle alarm to drive away. The red and blue lights will automatically flash an alarm and push the alarm information to the mobile phone app.
Multi-user viewing
Support 4 users to watch online at the same time, Under 24-hour protection
AI humanoid detection Real-time alarm
In case of humanoid movement in the monitoring area, immediately push the alarm message to the mobile terminal so the situation can be viewed anytime and anywhere.
Drawing alarm. Get urgent situations in real time.
Draw the warning area. When there is a humanoid movement in the monitoring area, it will immediately push the alarm message to the mobile phone to avoid children entering the dangerous area.
Full-color night vision
IR LED light+LED light, irradiation distance: 15~20 m, whether morning or night. Can clearly capture the wonderful moment
The Night vision mode is adjustable.
Once a moving object is scanned at night, it automatically switches to Full-color mode to see the face at a glance.
Waterproof & dust-proof
Waterproof & dust-proof. Not afraid of wind or sun, can easily deal with rain and snow weather
Guarding various scenes
It can be widely used in shopping malls, schools, families, finance, factories, office buildings and other scenes.
Synchronous recording, secure storage
Large capacity hard disk video recorder, Cloud storage, support TF Card (up to 256G) and other storage methods. which can facilitate fast video recording and playback and make free storage safer
Remote monitoring and multiple terminal viewing
Supports real-time viewing of multiple terminals on mobile phone and PC
Easy networking, simple and fast
Encrypt privacy Ensure security
Four protection systems to prevent privacy leakage

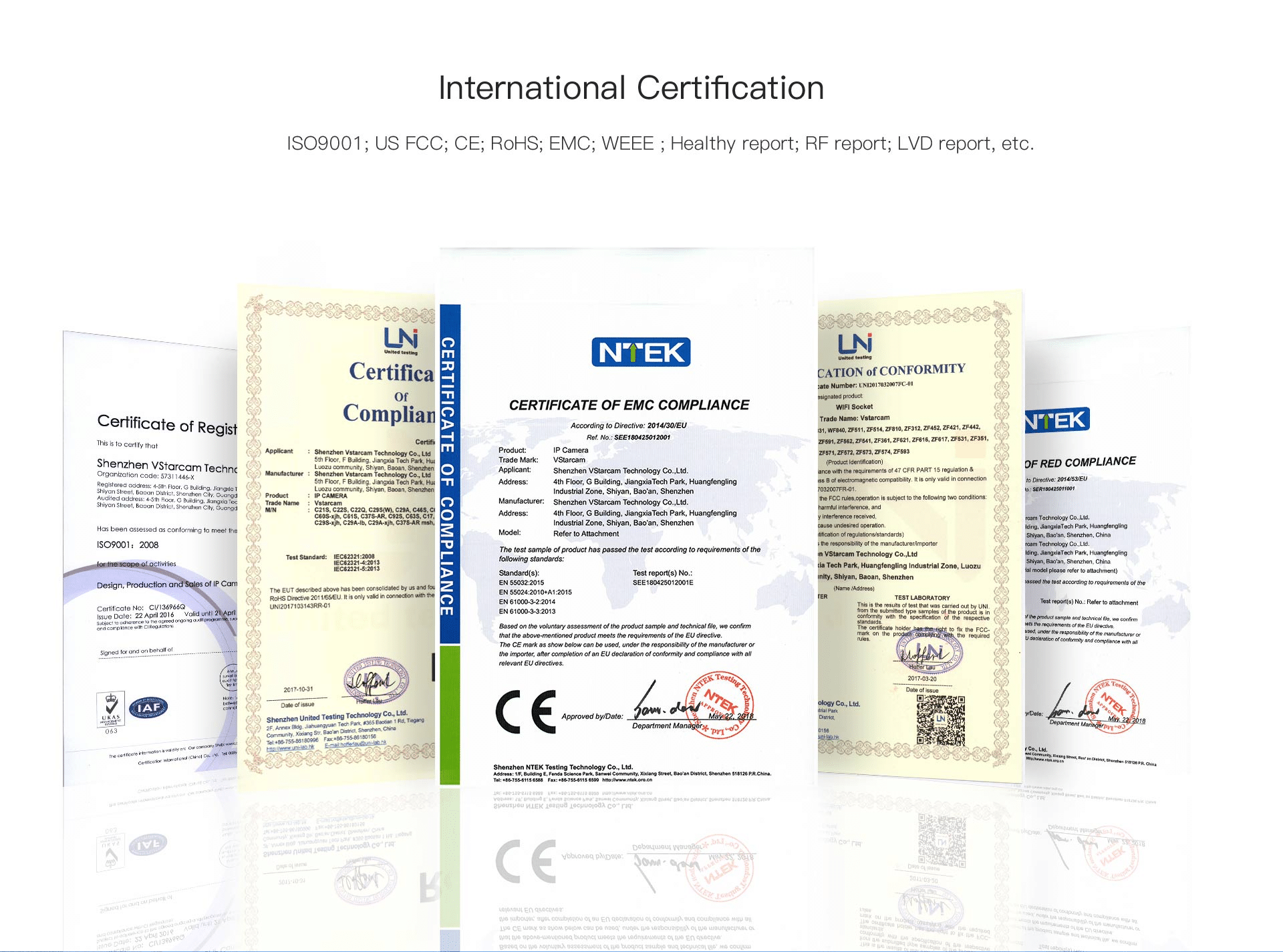

International Certification
ISO9001; US FCC; CE; ROHS; EMC; WEEE; Healthy report; RF report; LVD report, etc.
Specs
✮F2.0 large aperture, more light intake, clearer night vision
✮Dual-core light board, full-color image day and night
✮ISP image processing technology, preserving true colors
✮Human detection, real time alerts, red and blue light warning
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | Ingenic |
| Memory | 512Mb | |
| Lens | 4mm | |
| Image sensor | 1/2.7″ 1080p progressive scan CMOS sensor | |
| Minimum illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night vision | Black and white night vision, full-color night vision | |
| Viewing angle | Diagonal: 91° | |
| Video | Resolution | 1080P 1920×1080/15FPS/2MP；1296P 2304×1296/15FPS/3MP |
| Night vision | Black and white night vision, full-color night vision | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| Pan/Tilt | Rotation angle | Pan：350° tilt：95° |
| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Support cloud storage, users can purchase according to their needs. | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, human tracking and area detection |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 4.32W (0.36A); Maximum power: 8.04W (0.67A) | |
| Operating condition | Working temperature: -10～45℃, working humidity <90% | |
| Weight | Net weight: 428g . Gross weight: 728g | |
| Camera size | 176x108x159mm | |
| Packaging box size | 180x160x125mm | |
| Carton size | 645x380x335mm, 20PCS/CARTON |
