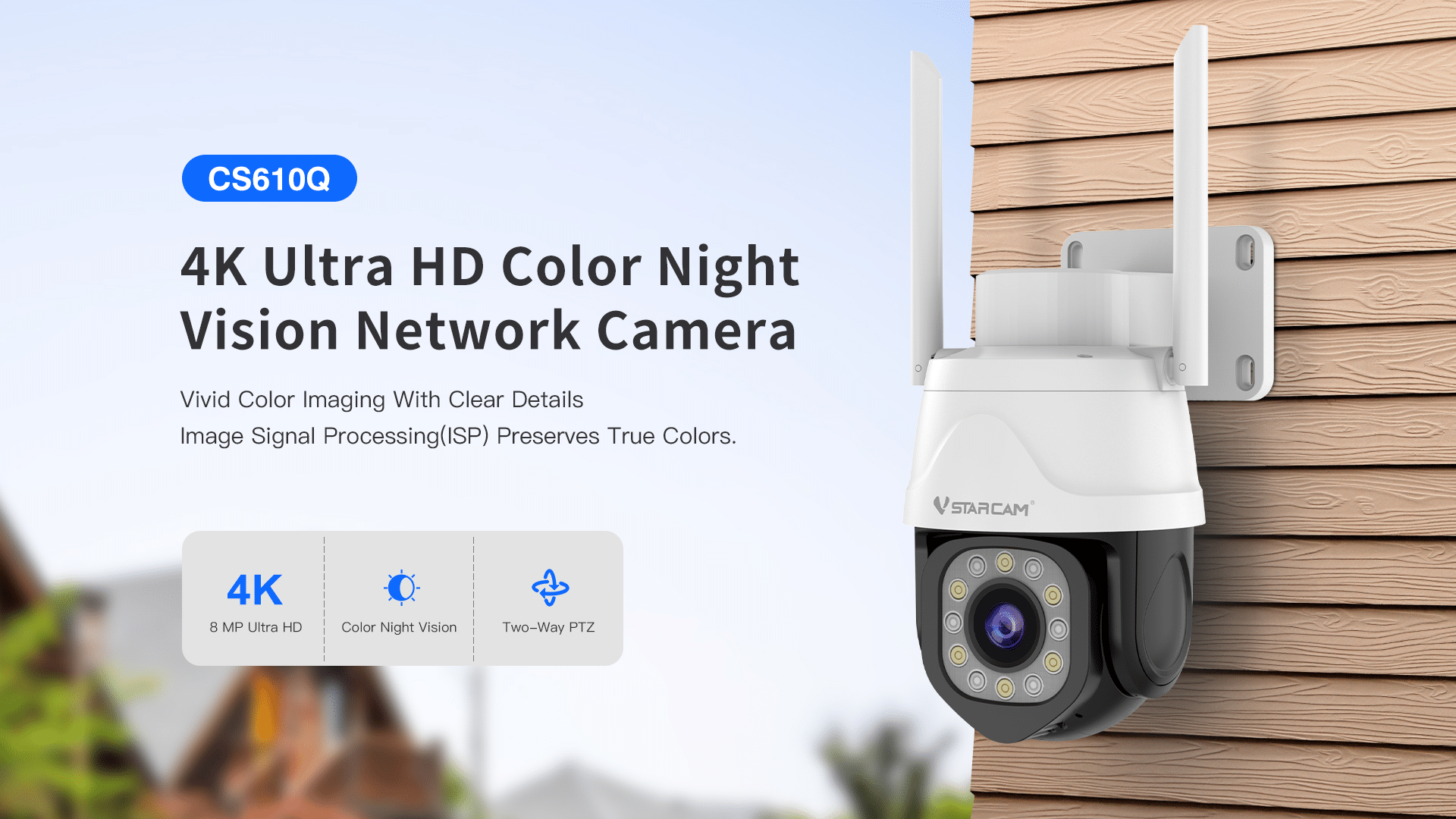

Vivid Color lmaging With Clear Details Image Signal Processing(ISP) Preserves True Colors.
8 MP 4K Ultra HD Image Quality
The camera has 8 MP 4K image quality and a resolution of up to 3840 * 2160P. It adopts professional image processing technology, with delicate images and enhanced colors.

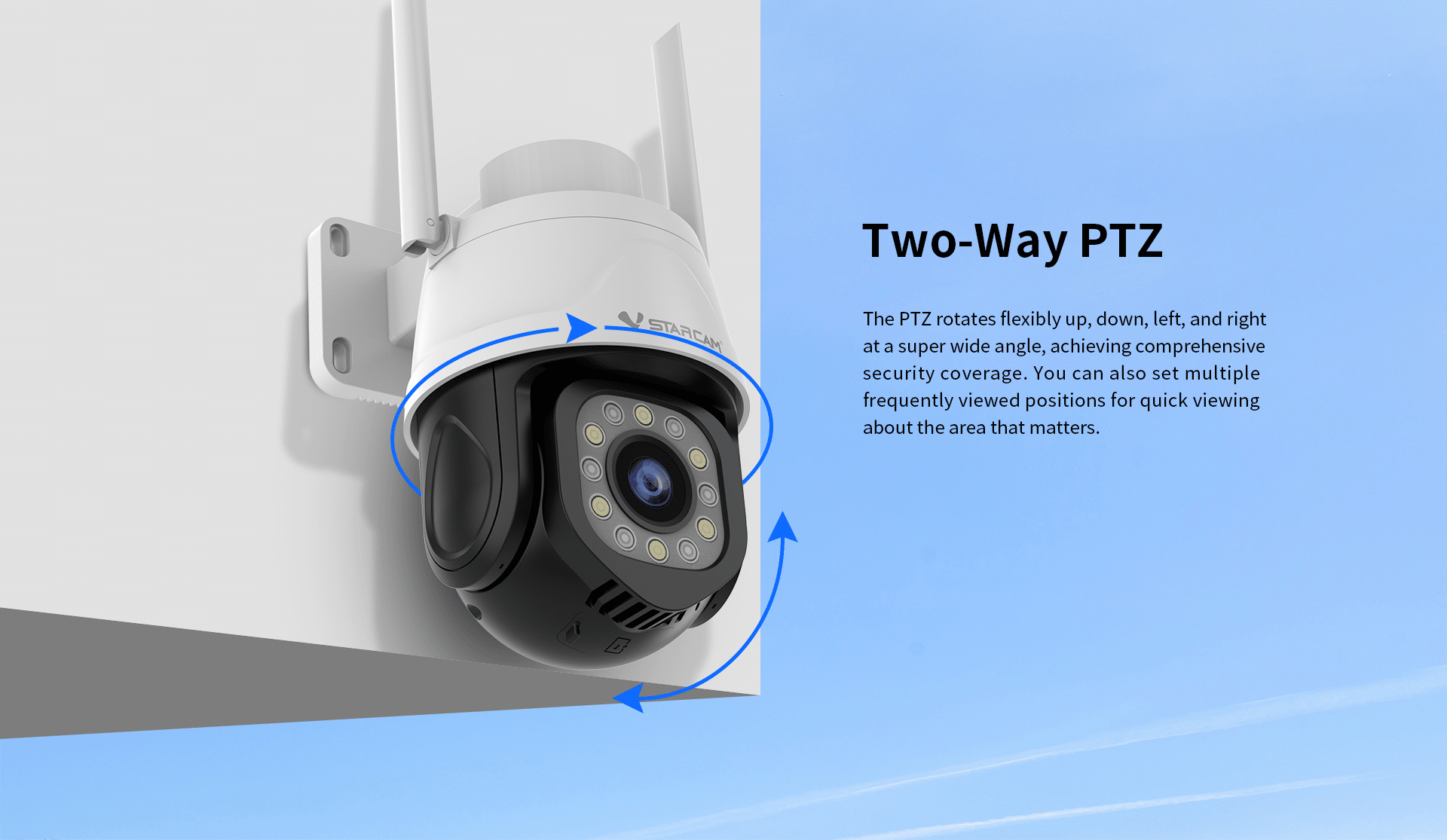

Two-Way PTZ
The PTZ rotates flexibly up, down, left, and right at a super wide angle, achieving comprehensive security coverage. You can also set multiple frequently viewed positions for quick viewing about the area that matters.
IP66 Waterproof &Dustproof, Convenient and Practical
The sturdy housing makes this camera waterproof and dustproof, working perfectly both inside and outside your house in any harsh weather conditions. And wireless is more convenient and practical.
Easily Cope With Any Outdoor Environments

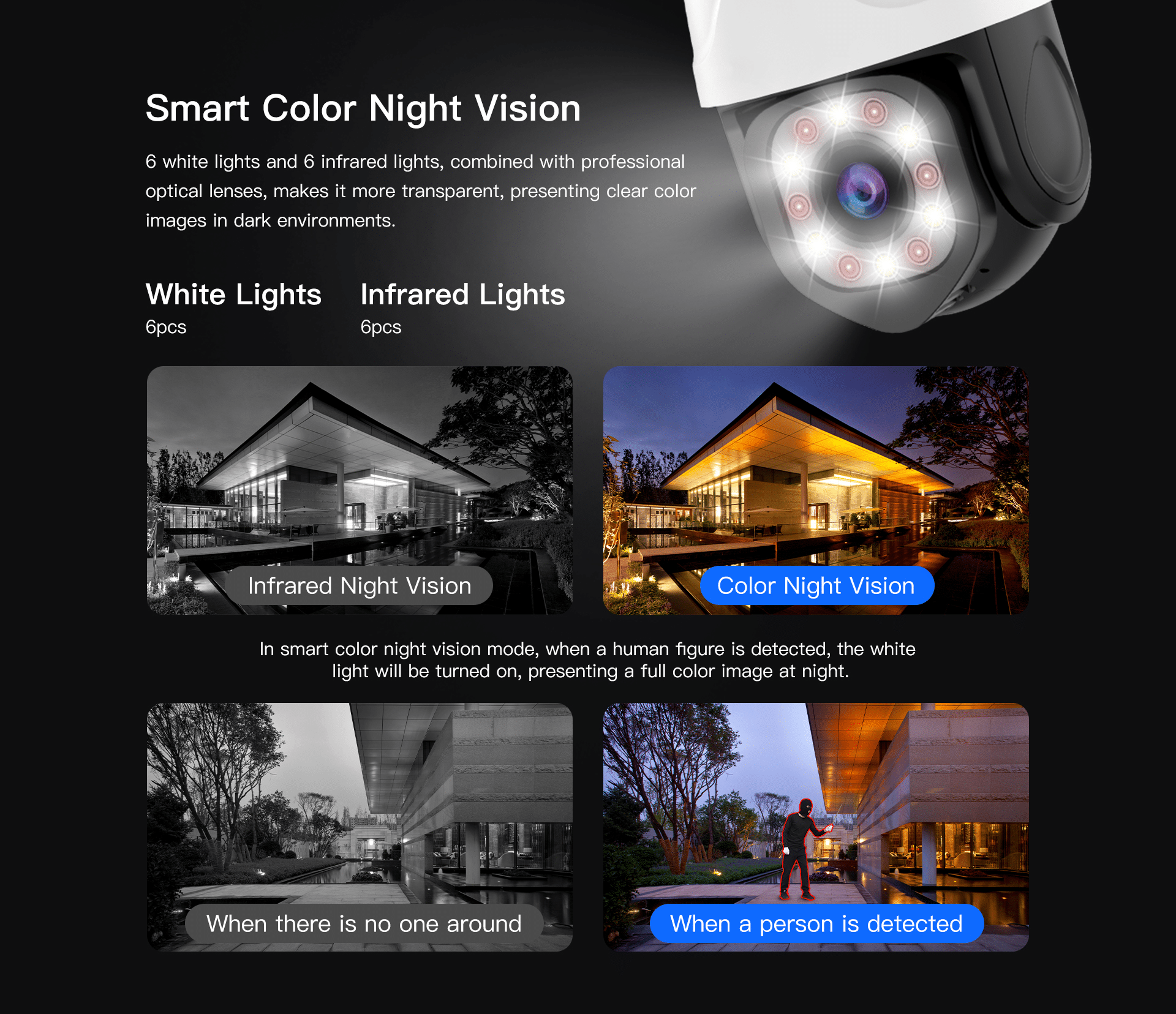

Smart Color Night Vision
Six white lights and six infrared lights, combined with professional lenses, make it more transparent, presenting clear images in dark environments.
In smart color night vision mode, when a human figure is detected, the white light will be turned on, presenting a full-color image at night.
Human Detection
It supports human detection, significantly reducing false alarms caused by small animals walking or trees shaking and filtering out invalid alarms.
Human Tracking
When someone passes through the monitoring area, it automatically captures their movement trajectory, tracks them, and sends an alarm message to the phone.
Intelligent Voice Function
Two-Way Voice
The camera is equipped with a high-power speaker and a highly sensitive microphone, allowing for real-time remote voice intercom anytime, anywhere. The camera captures clear human voices and flutter out noise in the on-site environment.
IntelligentNotification Sound
It supports DlY recording of personalized voice, and different devices push differentiated sound, accurately knowing which device is triggered.
Sound Light Alarm
When the camera detects a suspicious person or object, its siren and spotlight will be activated to warn off the unwelcome.
Meanwhile, it will push alarm information to the phone to prevent loss in advance.
Simultaneous Viewing
It supports multiple people viewing simultaneously on computers, tablets, and phones.
Optional StorageMethods, TF CardCould Storage, NVR
TF card storage supports up to 256GB and can be easily played back, downloaded, and shared by date, time, or image.
Specs
| ✮4K 8MP | ||
| ✮Starlight night vision, clear at night | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮Human detection, real time alerts | ||
| ✮Remote access, view the monitoring areas anytime and anywhere |
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| Collection | CPU | Ingenic T41 |
| Memory | 1Gbit | |
| Lens | 4mm | |
| Image sensor | 1/2.7 CMOS sensor | |
| Minimum illumination | 0.01Lux | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night Vision | 6 warm lights and 6 infrared lights | |
| Viewing angle | Diagonal：91° horizontal：77.3° vertical：42.9° | |
| Video | Resolution | 3840*2160P/25FPS/ MP |
| Night Vision | Infrared night vision, full color night vision | |
| Compression standard | H.265 /MJPEF/JPEG | |
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8 Ω 2W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| AI | Humanoid detection | Humanoid detection, filtering invalid video events |
| Object tracking | Human tracking, automatically following after detecting a person | |
| Area detection | Free daub, only monitoring the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Support cloud storage | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, human tracking, siren sound, and area detection |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 5.2W (with infrared light on) Maximum power: 11.7W | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | (Note: in kind prevail） | |
| Packing list | Camera, screw pack, warning sticker, screwdriver, manual |
