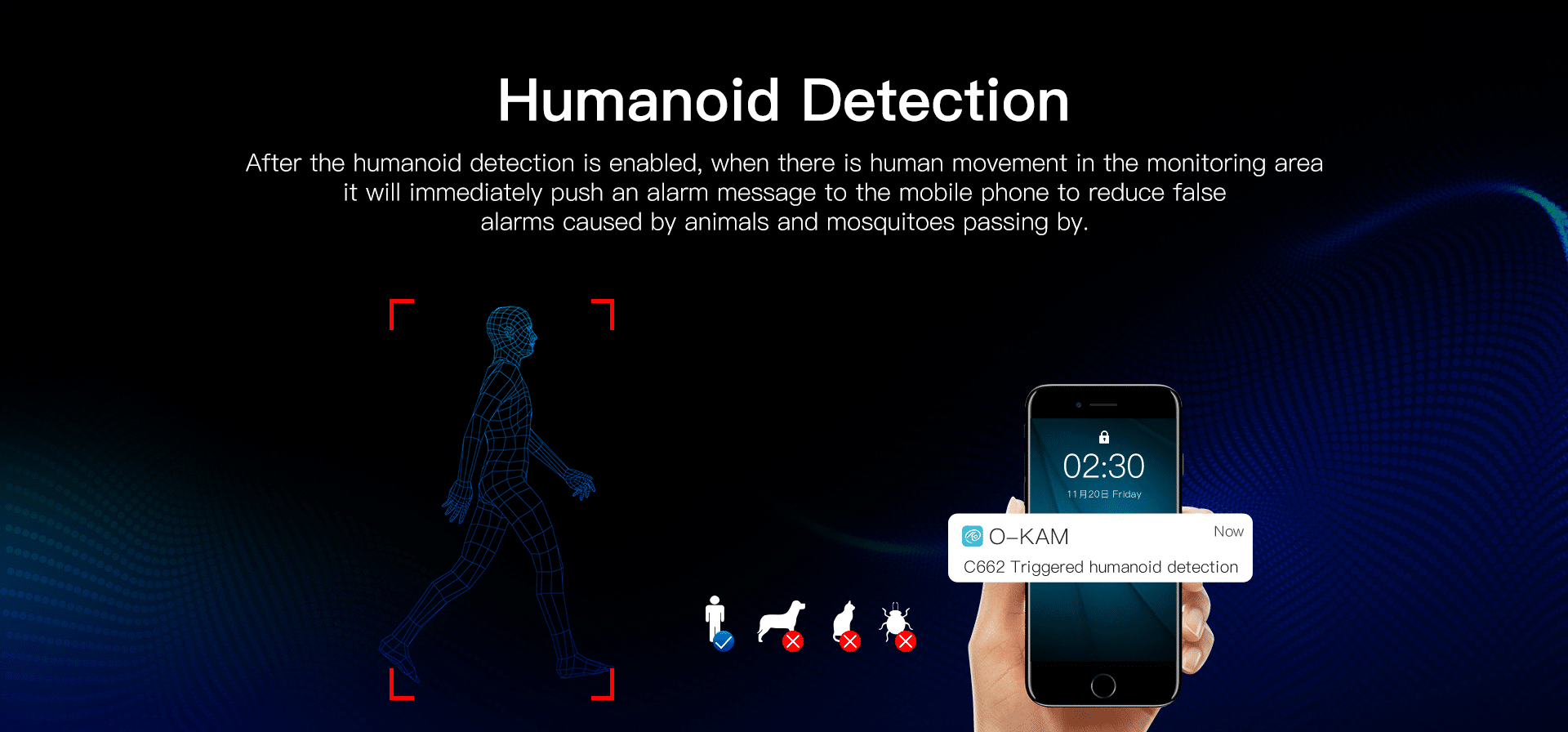

Humanoid Detection
After humanoid detection is enabled, when there is human movement in the monitoring area, an alarm message will be immediately pushed to the mobile phone to reduce false alarms caused by animals and mosquitoes passing by.
1280×720 HD image quality
It has high-definition resolution and can capture more details. The image is smooth and clear.
Sound and Light Alarm Dual Warningto Drive Theft
When a suspicious moving object is detected, the device will automatically capture the image and issue a high-decibel alarm to drive away the intruder, which will automatically flash the White Light to the alarm. It will. Simultaneously, the alarm information is pushed to the mobile app.

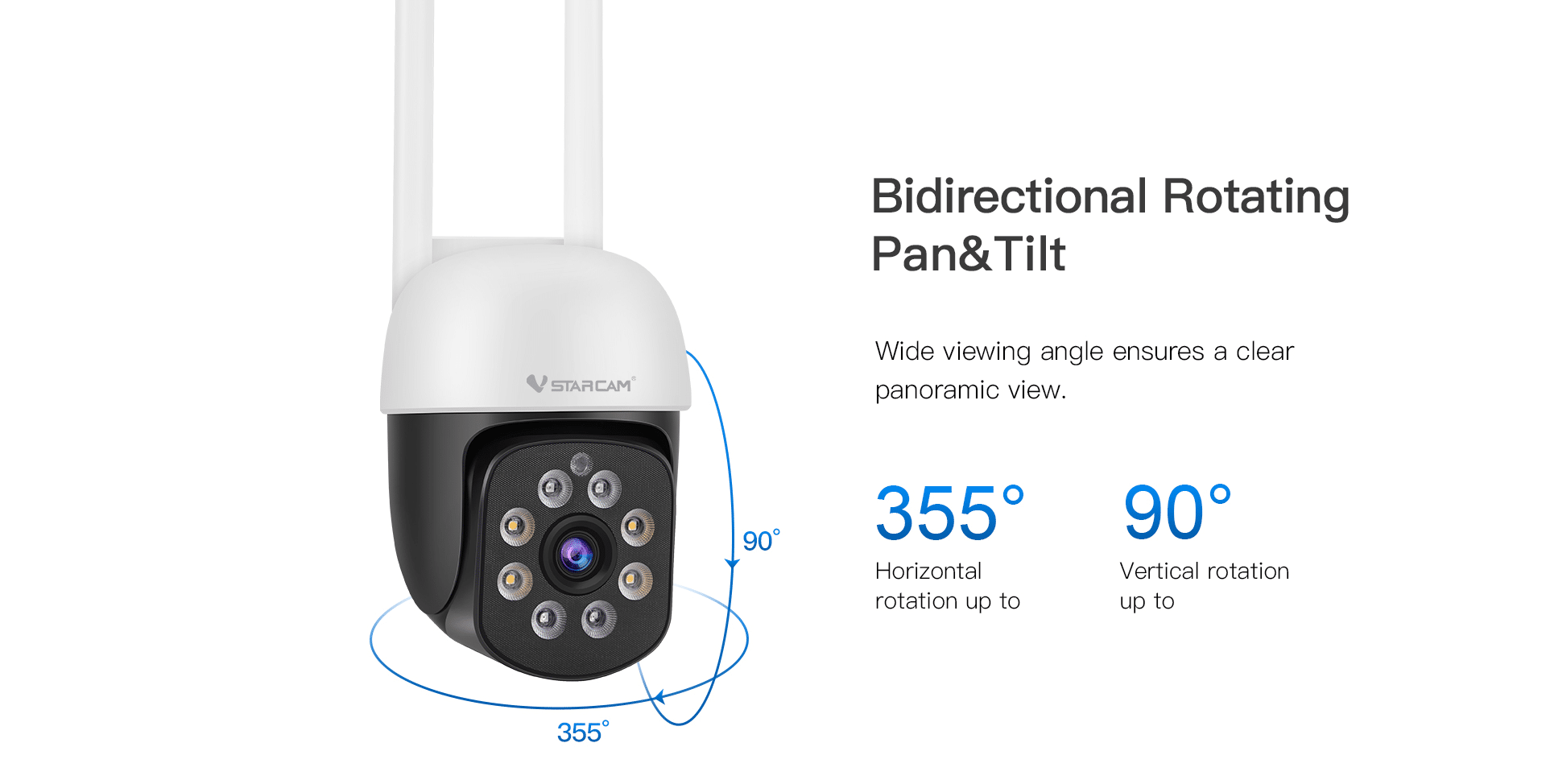

Bidirectional Rotating Pan&Tilt
A wide viewing angle ensures a clear panoramic view.
Area Detection Alarm
Draw a warning area. It will immediately send an alarm message to the mobile device when there is human movement in the monitoring area.
Two-Way Voice Easy Chatting
It has a built-in speaker and a high-sensitivity microphone, making it easy to communicate anytime, anywhere.

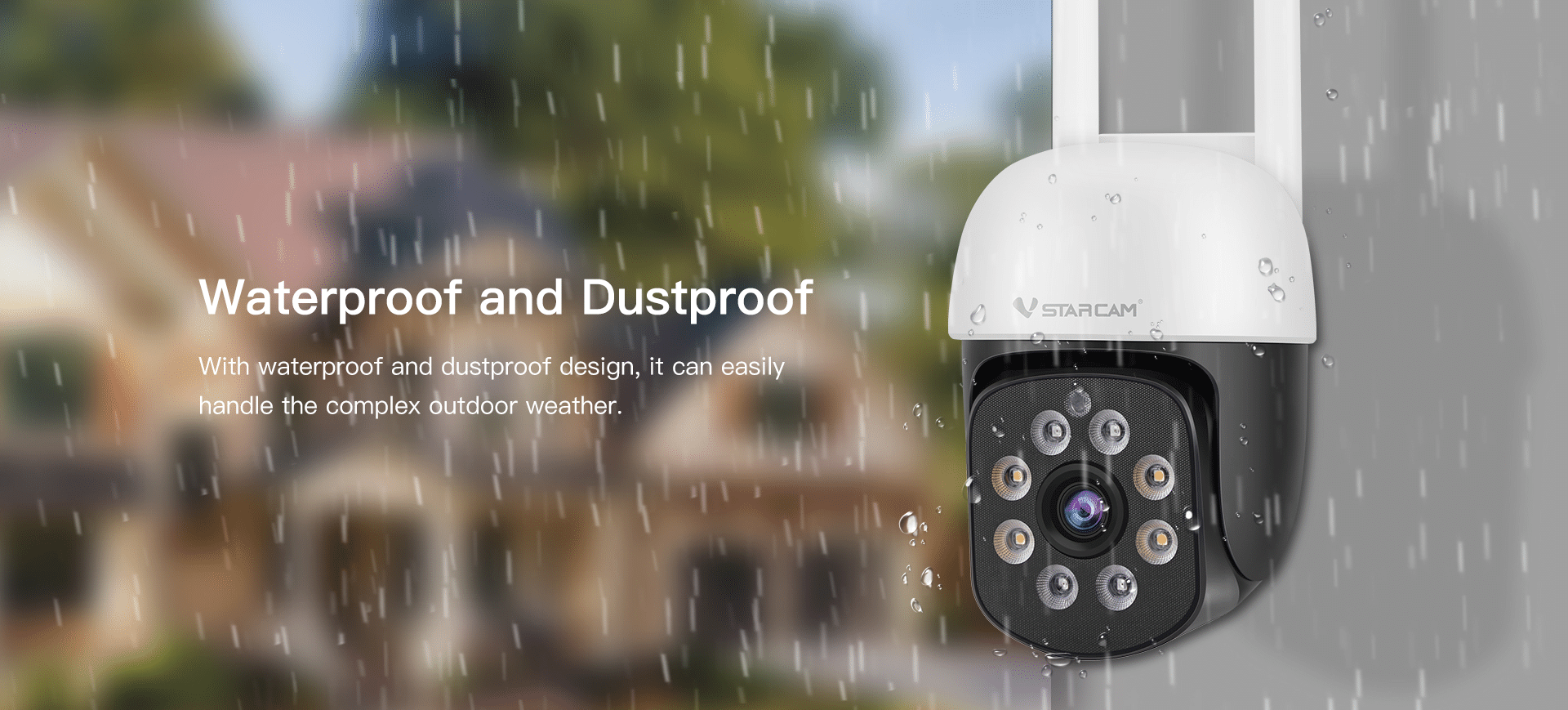

Waterproof and Dustproof
With a waterproof and dustproof design, it can easily handle complex outdoor weather.
Bluetooth connection: easy and fast!
Bluetooth networking is simple and convenient, with faster connection speed!
Place the camera close to the phone, and the App will automatically pop up a Bluetooth networking window.
Click”Connect” and follow the instructions to operate.
Full-Color Night Vision
It has dual filters that can be automatically switched. With four white lights and four infrared lights, its illumination distance can reach 15-25 meters. The full-color night vision is excellent.

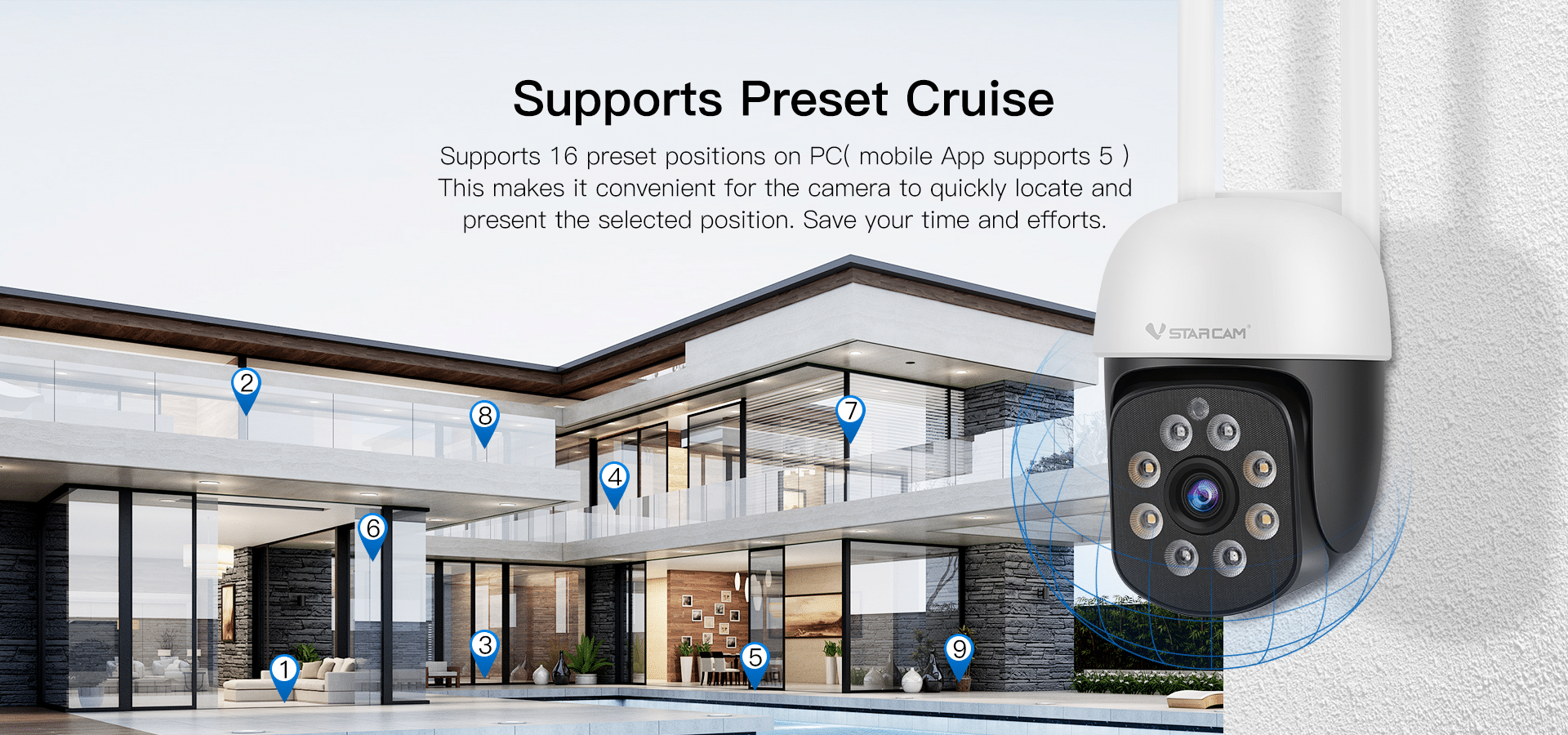

Supports Preset Cruise
It supports 16 preset positions on PC( mobile App supports 5 ). This makes it convenient for the camera to quickly locate and present the selected position. Save your time and effort.
Specs
| Sorts | Type | Parameters |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| Image Sensor | 1/4.5 inch high quality 1 MP CMOS image sensor | |
| Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |
| Night Vision | Dual filter automatic switching, 4 white lights and 4 infrared lights, with an illumination distance of 15-20 meters | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| Data rate | Mainstream：720P/1280×720@15fps； Substream：360p(640×360)@15fps | |
| Bit rate/maximum frame rate | 128～4096kbps/30fps | |
| Image adjustment | Adjustable brightness and contrast | |
| Audio | Input | Built-in microphone |
| Output | External high quality speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/bit Rate | G.711/64kbps | |
| Network | Network interface | No network interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless network | IEEE802.11b/g/n; Support AP mode | |
| Wireless frequency | 2.4~2.4835GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Pan&Tilt | Rotation angle | Horizontal 355°/Vertical 60° |
| Preset position | Supports 16 presets (mobile app only supports 5) | |
| Storage | Storage | Supports TF card(max 256GB); Cloud Storage;NVR;NAS; |
| Alarm | Alarm detection | Supports motion detection, humanoid detection, human tracking, Voice and flash alarm, illumination function,timing white light ON/OFF |
| Physical Indicators | Rated voltage | DC5V |
| Power consumption | ||
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | (Note: in kind prevail） | |
| Package size | (Note: in kind prevail） |
