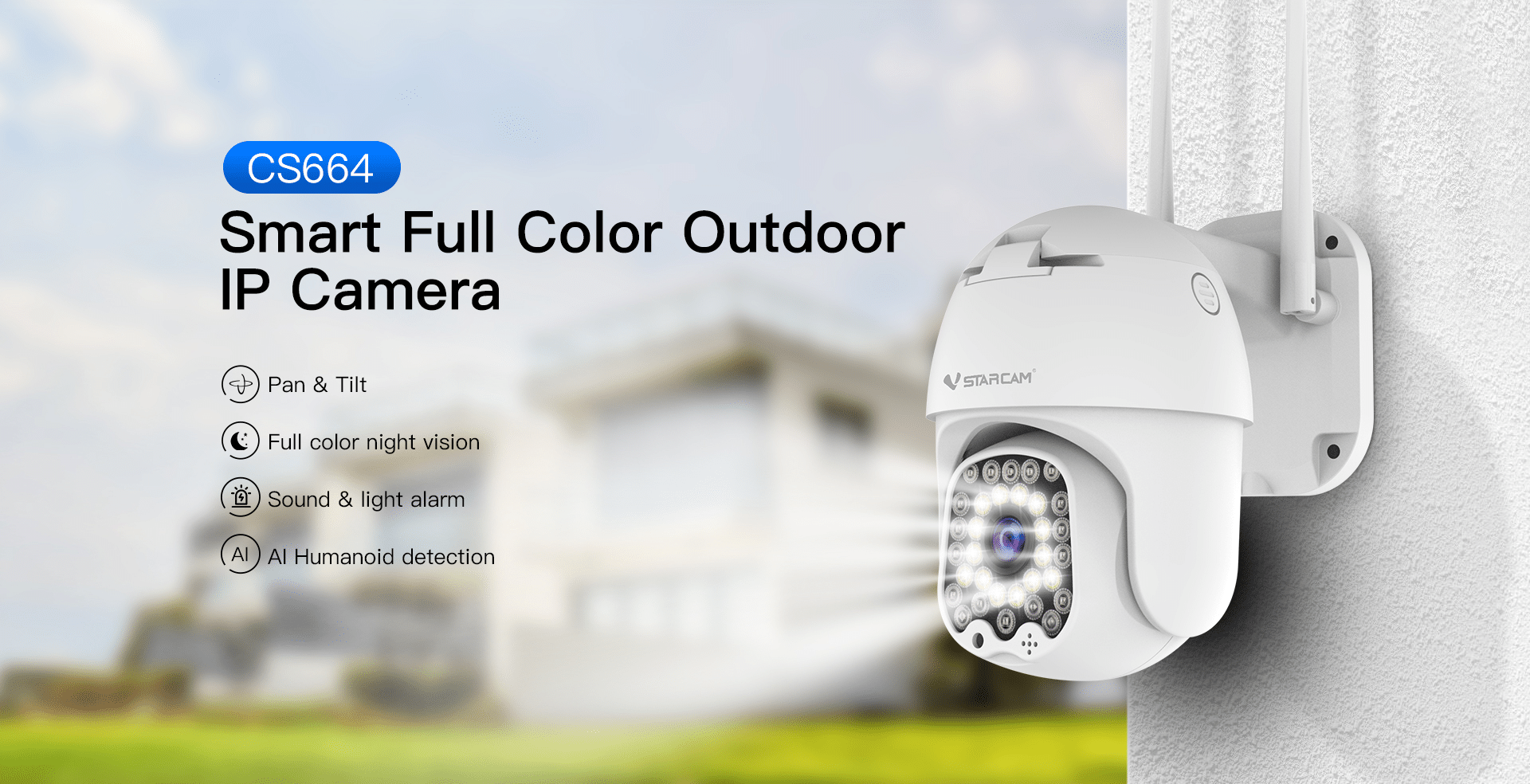

Smart Full Color Outdoor IP Camera CS664

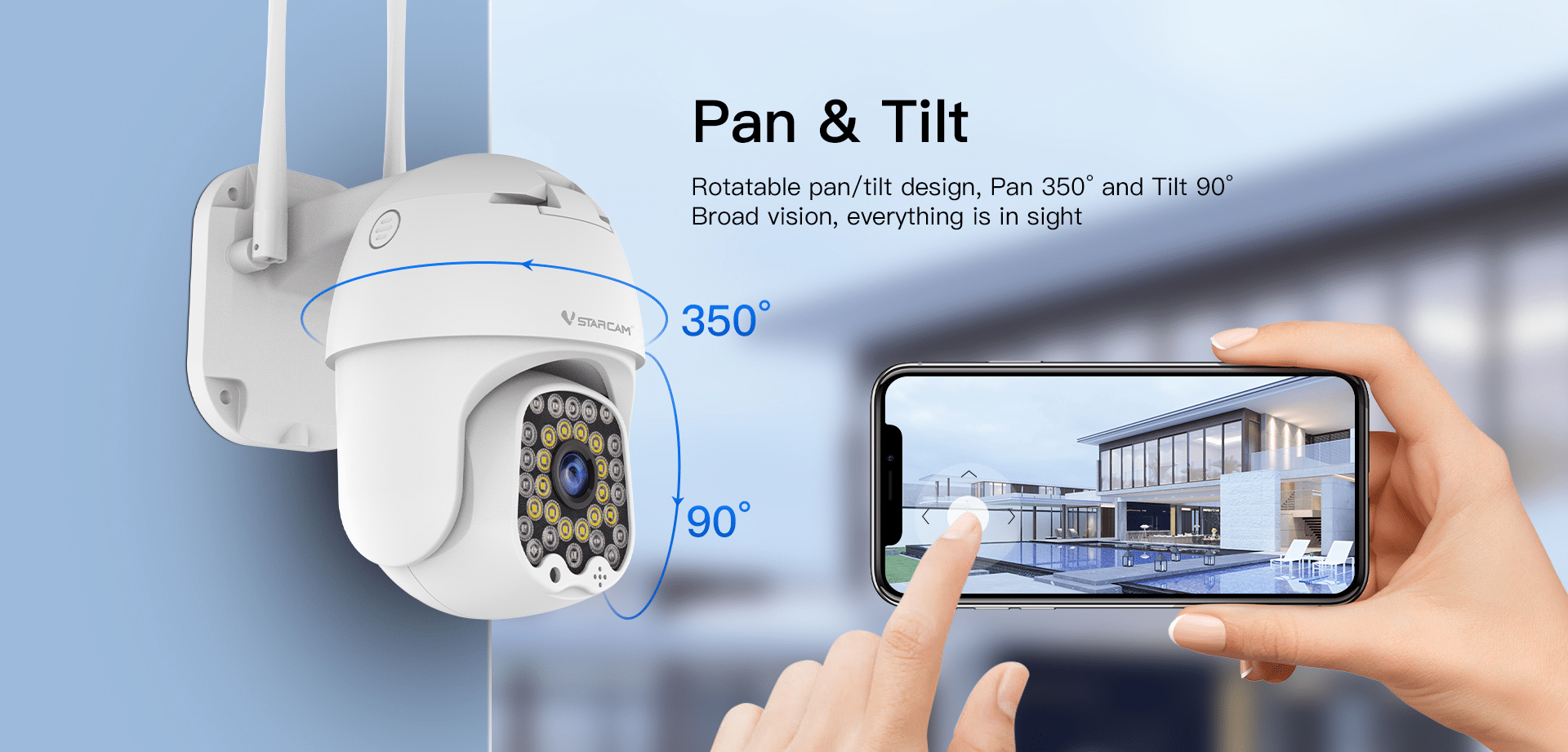

Pan & Tilt

Rotatable pan/tilt design, Pan 350° and Tilt 90. Broad vision, everything is in sight

AI Humanoid detection

Improve the accuracy of alerts
When there is a humanoid movement in the monitoring area, the alarm message will be pushed to the mobile phone immediately.

Reduce false positives caused by common mosquitoes, tree shaking, etc.

Two-way talk

Built-in speaker and high-sensitivity microphone for convenient communication anytime, anywhere

Sound and light drive theft

When a suspicious moving object is detected, the device will automatically capture the suspicious image and issue a high-decibel siren to drive away.

It also automatically fashes the LED light to the alarm and pushes the alarm information to the mobile app.

Delimitation detection alarm

When there is a humanoid movement in the monitoring area, the alarm message will be pushed to the mobile phone immediately

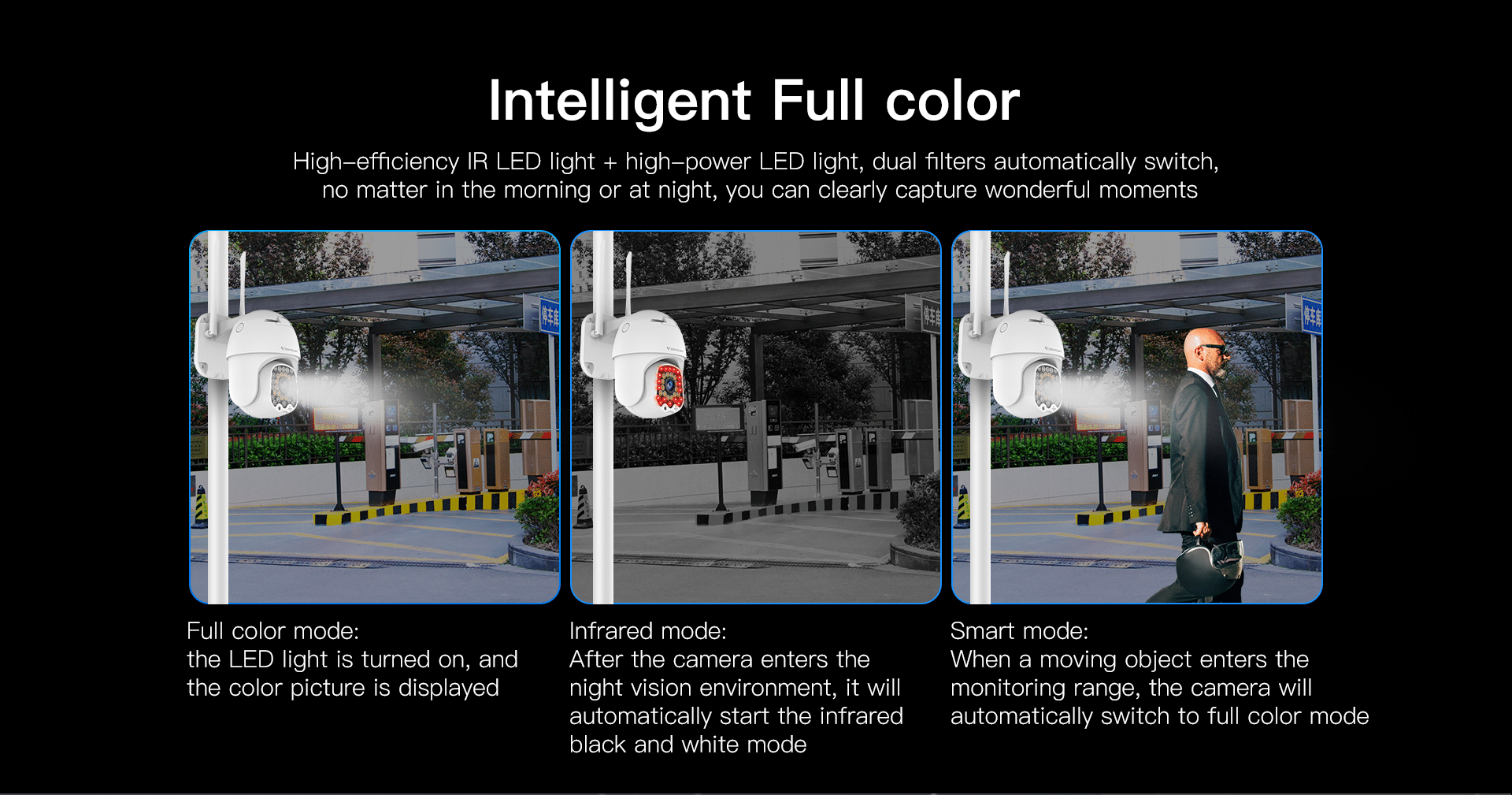

Intelligent Full color

High-efficiency lR LED light + high-power LED light, dual filters automatically switch.

Whether in the morning or at night, you can clearly capture wonderful moments.

Full-color mode: the LED light is turned on, and the color picture is displayed

Infrared mode: After the camera enters the light vision environment, it will automatically start the infrared black-and-white mode

Smart mode: When a moving object enters the monitoring range, the camera will automatically switch to full-color mode

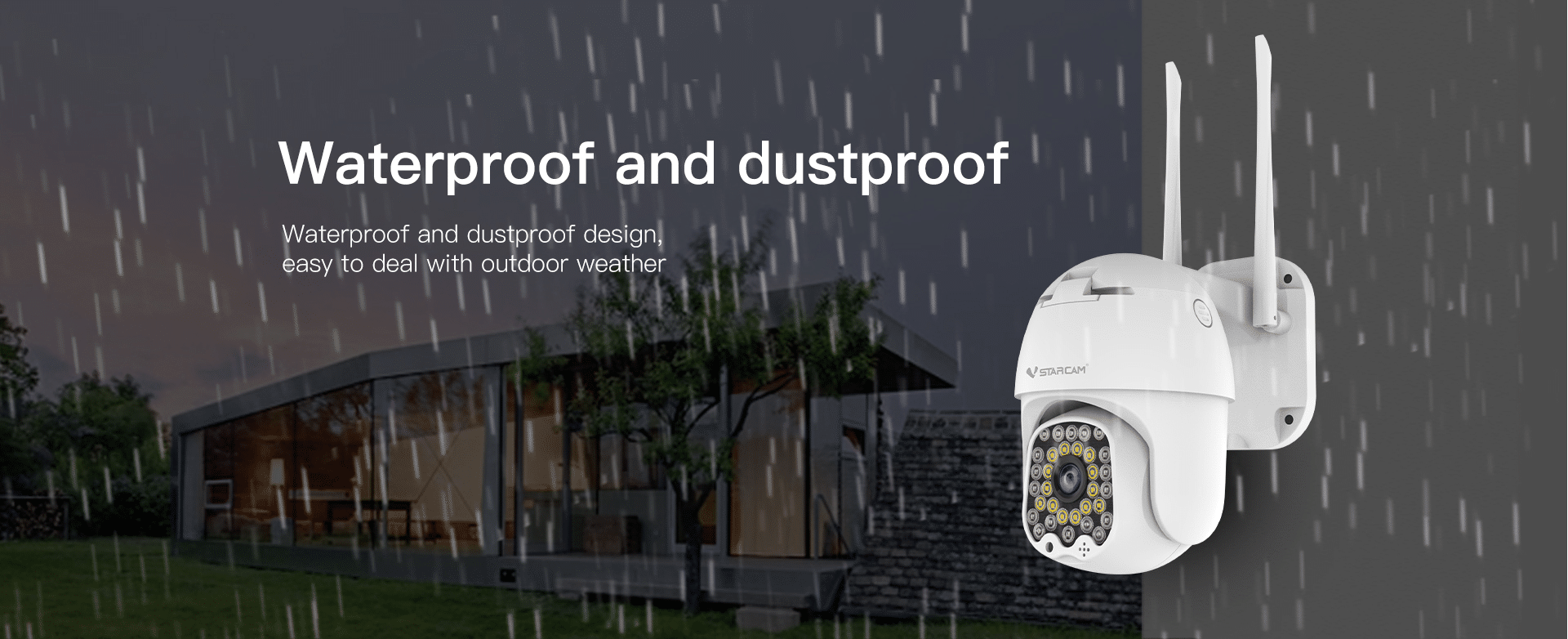

Waterproof and dustproof

Waterproof and dustproof design, easy to deal with outdoor weather

Guard a variety of scenarios

It can be widely used in shopping malls, schools, families, finance, factories, office buildings and other scenarios

Spec

✮Pan & tilt
✮Black and white night vision, full color night vision
✮ISP image processing technology, preserving true colors
✮Human detection, real time alerts

SortsTypeParameters
SystemOperating systemLinux
Online visitorSupports 4 visitors at the same time
APPO-KAM Pro
CollectionCPUIngenic T23
Memory512Mb
Lens4mm F2.0
Image sensor1/2.7″ 1080p progressive scan CMOS sensor
Minimum illumination0.5Lux (color mode), 0.1Lux (b&w mode)
Sensor performanceSupport automatic white balance, automatic gain control and automatic backlight compensation
Night visionBlack and white night vision, full color night vision
Viewing angle91°
VideoResolution1920×1080/15FPS/2 MP,1080P;2304×1296/15FPS/3 MP,1296P
Night visionBlack and white night vision, full color night vision
Compression standardH.264 main profile/Motion-JPEG/JPEG
IR controlIR-CUT, soft photosensitive control
Bit rate128~4096kbps
Image adjustmentBrightness, contrast, OSD display
AudioInputBuilt-in -38dB microphone
OutputBuilt-in 8Ω1W speaker
Sampling frequency/bit width8KHz/16bit
Compression standard/Bit RateG711A
Pan/TiltRotation angleHorizontal: 345° Vertical: 90°
NetworkNetwork interface10Mbps/100Mbps
Network protocolTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P
Wireless networkIEEE802.11b/g/n
Wireless frequency2.4G
Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK
StorageExternal TF cardSupports T-Flash cards (up to 256GB)
Cloud storageSupport cloud storage, users can purchase according to their needs.
AlarmAlarm detectionMotion detection, human detection, human framing, human tracking, siren alarm and area detection
Physical IndicatorsRated voltageDC12V±5%
Power consumptionPower: 4.32W (0.37A), Max power: 9.36W (0.78A)
Operating conditionWorking temperature: -10~55 ℃, working humidity<90%
WeightNet weight: 465g; Gross weight: 765g
Camera size171x112x179mm
Packaging box size195x205x130mm
Carton size545x425x415mm,16PCS/CARTON
